▌What Is a Double Head Busbar Bending Machine?

The Double Head Busbar Bending Machine is a hydraulic busbar bending machine specially designed for busway manufacturing. It is also known as a double head busbar press bending machine.The machine adopts a double-head press bending structure, with independent hydraulic systems installed on the left and right sides. The hydraulic systems drive the bending dies on both sides, allowing the machine to complete bending operations on both ends of the busbar in one process.Operators do not need to repeatedly turn over or change the direction of the busbar during processing, which solves the complicated single-side bending process of traditional single-head bending machines.

▌How Does a Double Head Busbar Bending Machine Work?

Step 1: Install the Double Head Busbar Bending Dies
Install the double head busbar bending dies according to the busbar processing requirements, and lock the dies firmly to prevent displacement during the bending process.
Step 2: Place the Busbar and Precisely Align the Position
Clean copper chips and debris from the surface of the roller worktable to prevent scratches on the busbar surface. Place the cut busbar smoothly on the roller conveyor table.The rollers provide smooth feeding without manual lifting. Push the busbar slightly forward or backward until it contacts the positioning stopper, and ensure that the busbar remains accurately positioned without deviation.
Step 3: Start the Foot Pedal and Complete Double-End Bending
According to the processing requirements, operators can start the left and right bending units separately, or activate both bending units simultaneously to quickly form both ends of the busbar. During the bending process, there is no need to move, flip, or turn around the busbar.
Step 4: Remove the Finished Product and Continue Processing
After the bending process is completed, the hydraulic cylinders return to their original positions, and the double head bending dies return to the initial position.After the bending heads are fully lifted, the operator can smoothly pull out the busbar from the roller worktable and remove the finished bent product.After checking that the bending angle and dimensions meet the requirements, continuous batch production can be carried out.

Double Head Busbar Bending Machine Processing Video

▌Features of Double Head Busbar Bending Machine

Specially Designed for the Busway Industry to Meet Mass Production Requirements

The Double Head Busbar Bending Machine is mainly used in the busway manufacturing industry and can be used as a busway bending machine. The double-head structure can complete double-end bending of the busbar in one process, improving busway processing efficiency and reducing manual positioning errors.It is especially suitable for mass production by busway manufacturers and electrical equipment companies.

Independent or Simultaneous Operation of Both Ends for More Flexible Processing

The double head busbar bending units can work independently or simultaneously. The machine is equipped with two foot pedal switches. Pressing one foot pedal allows one bending unit to operate independently, while pressing both foot pedals at the same time enables both sides to bend simultaneously.It provides flexible processing for busbars with different lengths and specifications.

High-Performance Hydraulic System for Stable and Reliable Bending

The Double Head Busbar Bending Machine adopts large-tonnage hydraulic cylinders and high-flow gear pumps, providing fast operation speed and stable output.With low operating noise, it can effectively ensure the forming quality of copper busbars and reduce deformation problems.

Special Die Design for Different Busbar Specifications

The machine is equipped with bending dies in different specifications. The dies can be quickly replaced according to busbar processing requirements, enabling bending processing of copper busbars with different specifications.

Brand Components for More Stable Machine Operation

The key electrical components adopt Schneider components, and other main parts are from well-known brands.This ensures safer and more stable machine operation and prevents production delays caused by equipment failures due to low-quality configurations.

▌What Types of Busbars Can Be Processed by a Double Head Busbar Bending Machine?

The Double Head Busbar Bending Machine is mainly used in busway manufacturing and is suitable for processing conductive bars such as copper busbars and aluminum busbars.The machine can perform double-end synchronous bending on rectangular copper and aluminum busbars, meeting the processing requirements of connection bars, corner bars, and special-shaped busbars during busway production.

It supports processing of copper busbars, aluminum busbars, and busway connection busbars.It is widely used in the manufacturing of dense busway systems, air insulated busway systems, industrial power distribution systems, and electrical complete equipment.


▌Double Head Busbar Bending Machine Specifications

The following specifications of Fenghua CNC Double Head Busbar Bending Machine show the core processing capabilities of the equipment and help customers choose the model suitable for their production requirements.

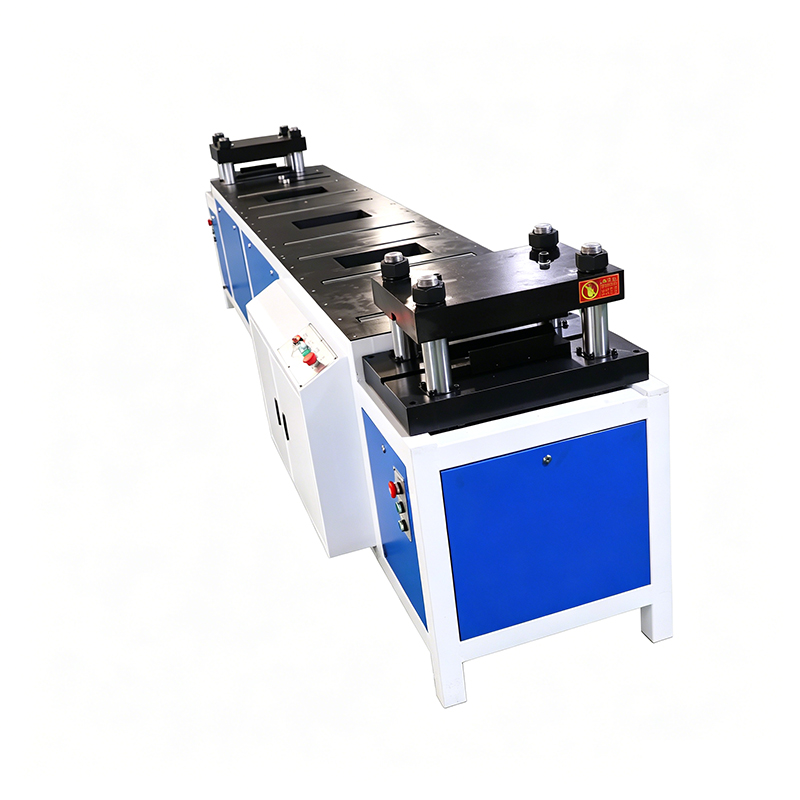

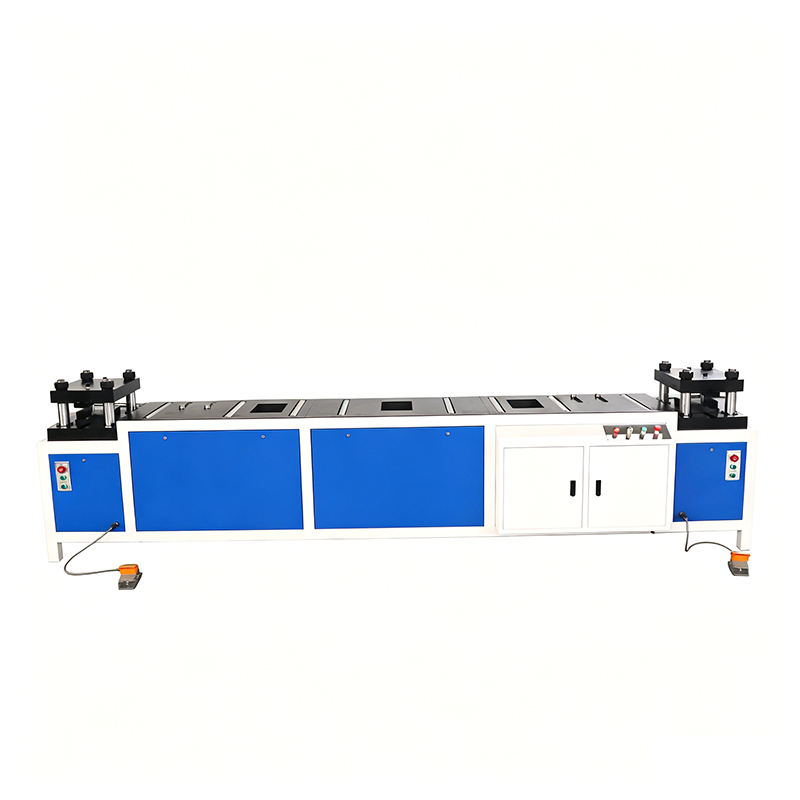

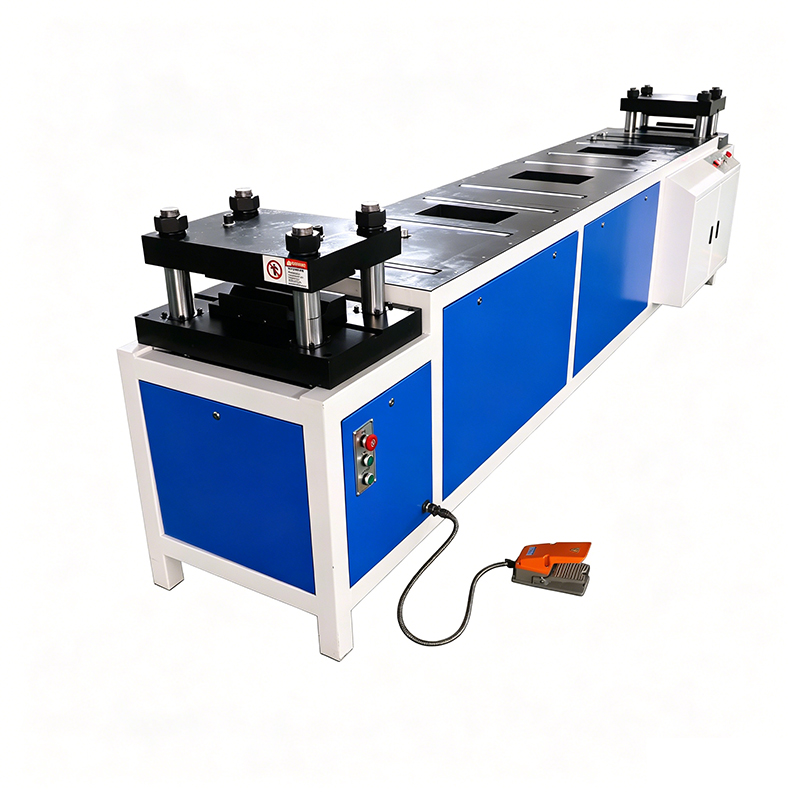

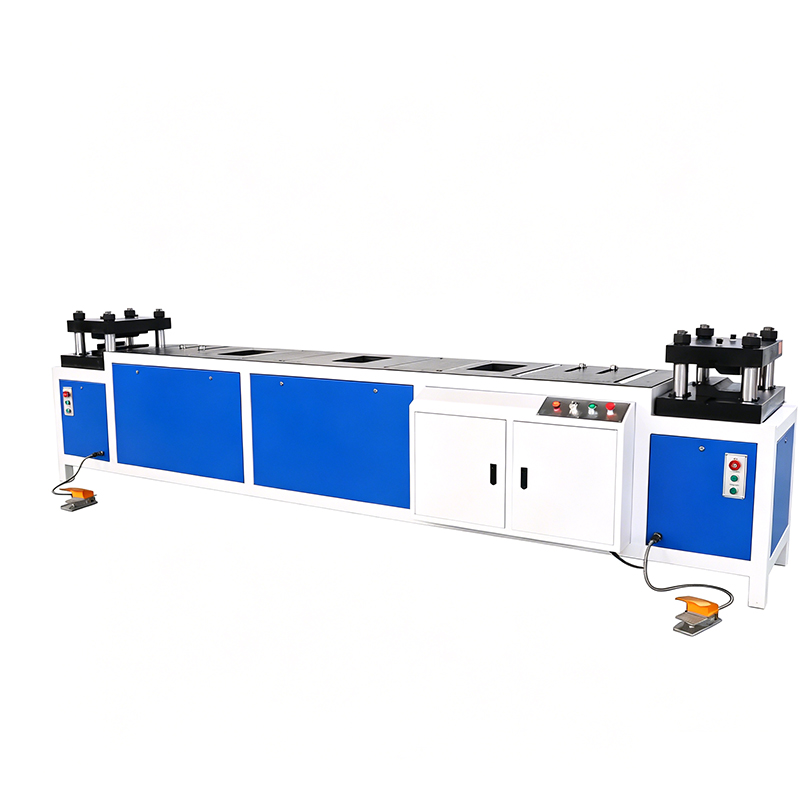

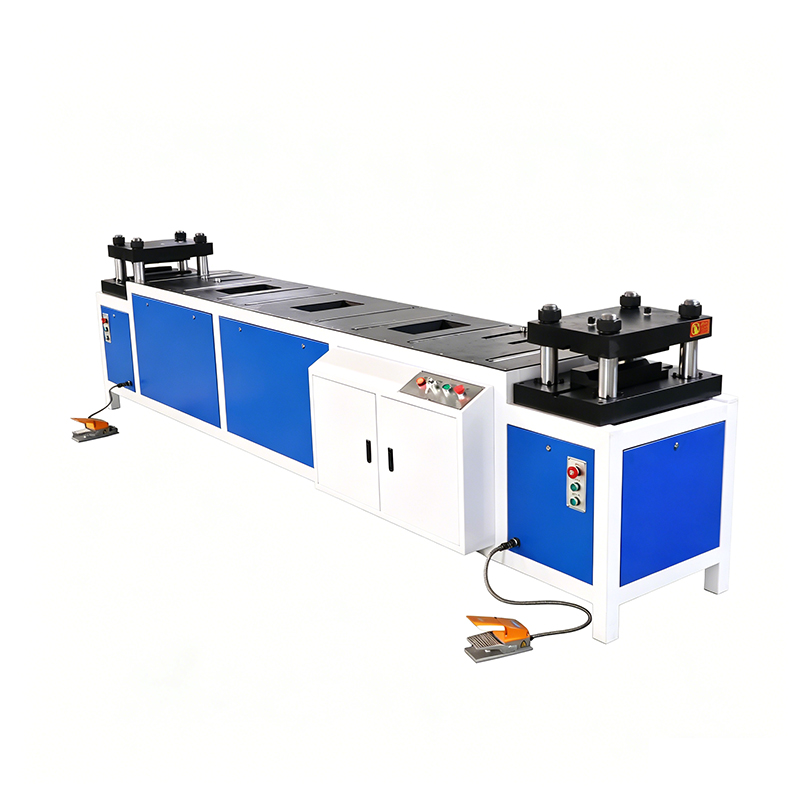

▌Double Head Busbar Bending Machine Gallery

▌Application Industries of Double Head Busbar Bending Machine

The Double Head Busbar Bending Machine is mainly used in the busway manufacturing industry. This busway bending machine is suitable for double-end bending processing of copper bars and aluminum bars used in products such as dense busway and air insulated busway.Through the synchronous bending method at both ends, the machine improves busway conductor processing efficiency and forming consistency, meeting the requirements of busway mass production.Main applications include: dense busway manufacturers, air insulated busway manufacturers, and busway supporting processing enterprises.

▌Why Choose Fenghua CNC?

15 Years of Focus on Busbar Processing Equipment and Deep Experience in Busway Applications

Fenghua CNC has focused on the R&D and manufacturing of busbar processing equipment for 15 years and has extensive experience in copper and aluminum busbar processing.From mechanical structure design, complete machine assembly, mold manufacturing to electrical control system commissioning, all processes adopt an independent R&D and production model.Based on the requirements of busway production for processing efficiency, bending accuracy, and batch production stability, Fenghua CNC continuously optimizes the structure of the double head busbar bending machine to provide efficient and precise bending solutions for different busbar specifications.

Self-Developed Double Head Structure Improves Busbar Processing Efficiency

During the processing of traditional single-head bending equipment, the busbar direction needs to be adjusted repeatedly, increasing manual operation time.Fenghua double head busbar bending machine adopts a double-head synchronous processing structure, which can complete bending processing at both ends of the busbar simultaneously without frequent flipping and repositioning.This effectively reduces auxiliary time and improves production efficiency, making it especially suitable for mass production requirements in the busway industry.

Supports Non-Standard Customization to Meet Different Busbar Processing Requirements

Different busway products have different requirements for processing dimensions, bending angles, and die structures.
Fenghua CNC has a professional R&D team that can customize the equipment processing range, bending dies, positioning methods, and automation configurations according to customers' actual production requirements, providing more suitable busway bending machine solutions.

Complete Busbar Processing Equipment System for One-Stop Solutions

Fenghua CNC not only provides Double Head Busbar Bending Machine, but also offers a series of processing equipment including CNC busbar punching and shearing machines and CNC busbar chamfering machines.According to customer production requirements, a complete production solution can be configured, covering busbar punching, shearing, bending, end arc processing, and finished product processing.This helps busway manufacturers and electrical complete equipment companies improve automation levels and reduce labor costs.

Complete After-Sales Service to Ensure Stable Equipment Operation

Starting from the purchase of the double head busbar press bending machine, Fenghua CNC provides professional technical support, including equipment selection, solution communication, manufacturing, installation guidance, operator training, and after-sales technical service.Through a complete service system, customers can quickly master equipment operation methods, reduce equipment downtime, and ensure continuous and stable production.

Extensive Export Experience Serving Global Customers

Fenghua CNC busbar processing equipment has been exported to multiple countries and regions, accumulating rich international project experience.From technical communication, equipment production, packaging and transportation to installation and training, Fenghua CNC provides a complete service process, making customers at home and abroad more confident when purchasing the double head busbar press bending machine.

▌Frequently Asked Questions

1. Why Choose a Double Head Busbar Bending Machine?

The MXSZW-602 Double Head Busbar Bending Machine is specially designed for busway production. Through the double-head bending method, it can complete double-end bending processing of the busbar without rotating the busbar during operation.It improves equipment processing efficiency and busbar processing consistency.

2. What Are the Advantages of a Double Head Busbar Bending Machine?
The double-head structure can complete bending processing on both ends of the busbar at the same time.Compared with traditional single-head equipment, it reduces manual handling and adjustment steps, improves processing efficiency, reduces operation errors, and improves product consistency, making it more suitable for mass production.

3. Can the Double Head Busbar Bending Machine Bend Both Ends at the Same Time?

Yes. The machine adopts a double-station design, and the bending units at both ends of the busbar can work simultaneously.One-time clamping can complete double-end bending processing, effectively reducing processing steps and improving production efficiency.

4. How Does the Equipment Ensure Bending Accuracy?

The MXSZW-602 adopts a hydraulic system to provide stable pressure and uses a precise positioning structure to control the processing position.It ensures consistent bending angles and dimensions of the busbar, reduces errors caused by manual measurement and adjustment, and is suitable for busway production with high requirements for processing accuracy.

5. Is the Equipment Difficult to Operate? Are Professional Technicians Required?

The equipment is easy to operate and can be mastered after basic training.Operators only need to select the corresponding dies according to the busbar specifications and understand the processing requirements during bending.
The bending process can be completed without complicated programming.

6. Can the Double Head Busbar Bending Machine Be Customized?

Yes. According to different busway models, processing dimensions, and production requirements, the equipment structure, die specifications, and processing range can be customized to meet the individual production needs of different companies.

7. Why Is the Double Head Busbar Bending Machine More Suitable for Busway Manufacturers?

Busway production usually requires a large number of connection copper bars to be processed.Traditional equipment requires manual adjustment and flipping of the busbar multiple times, resulting in lower processing efficiency.The Double Head Busbar Bending Machine can complete bending at both ends in one process, improving production efficiency, reducing labor costs, and ensuring processing consistency for batch products.It is an ideal equipment choice for busway manufacturers to improve automated production efficiency.

8. Does the Double Head Busbar Bending Machine Support Customized Bending Dies?

Yes. We can provide customized die solutions according to customers' busway production requirements.Customers can provide design drawings, and we can manufacture the dies according to the drawings.We can also design matching bending dies according to customer requirements to ensure that the processing results meet production needs.

9. What Is the Delivery Time of the Double Head Busbar Bending Machine?

The delivery time of the standard configuration Double Head Busbar Bending Machine is usually 10–15 days.
If special specifications, non-standard structures, or customized dies are required, the production period will be extended accordingly.The delivery time is approximately 20 days.

10. Do You Provide Installation Training for the Double Head Busbar Bending Machine?

Yes. After customers receive the equipment, our professional after-sales personnel will contact customers as soon as possible to provide support, including equipment installation guidance, operation training, die usage instructions, and daily maintenance guidance.Through professional online training, we help customers quickly master equipment operation methods.If you need electronic operation procedures and electronic manuals, please contact us.
