Fully Automatic CNC Busbar Punching & Shearing Machine | CNC Copper Busbar Processing Equipment

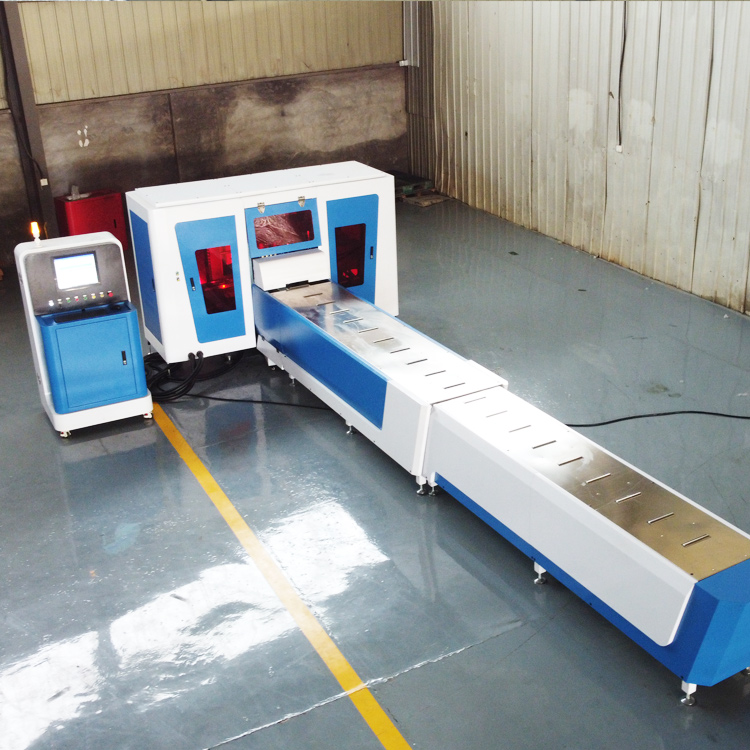

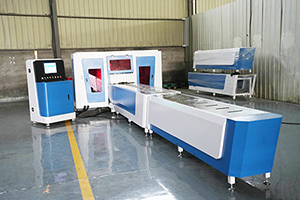

The CJ-MX703 CNC Busbar Punching and Shearing Machine is a high-precision automatic busbar processing machine equipped with six servo systems, enabling 6-axis high-speed busbar punching and shearing operations. It is specially designed for automatic processing of copper busbars and aluminum busbars, and can perform multiple machining processes, including punching, shearing, cutting, and embossing.

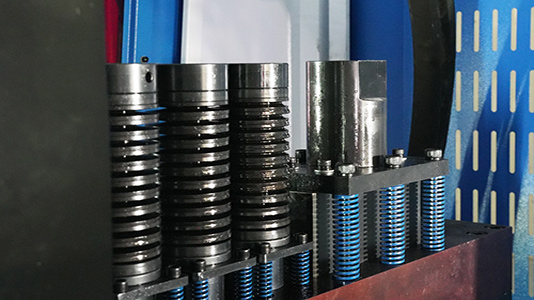

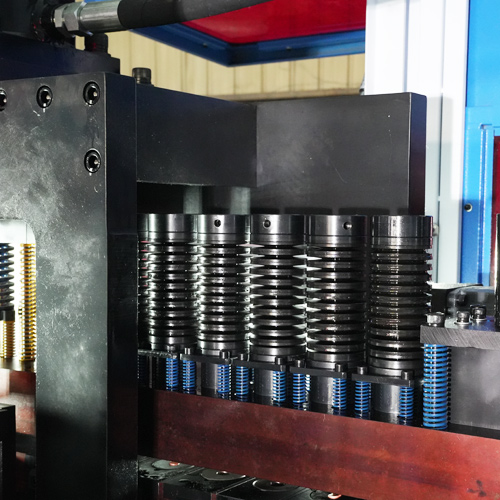

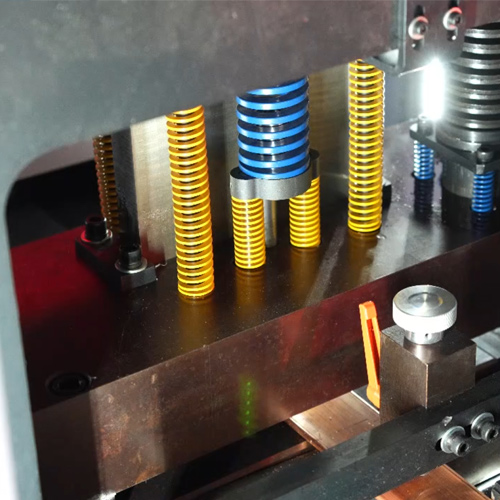

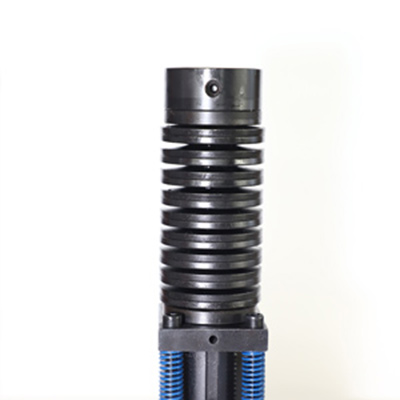

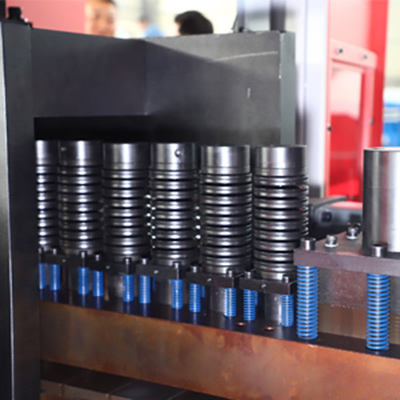

The CNC busbar punching and shearing machine adopts a vertical single-row mold rack design, which can be equipped with 7 punching dies, 1 shearing die, and 1 embossing die, or 8 punching dies and 1 shearing die according to different processing requirements. The machine supports importing 2D/3D busbar drawings and realizes automatic feeding, precise positioning, and continuous machining, effectively reducing manual operation and improving production efficiency.
The equipment can also be used together with a CNC Busbar Bending Machine to build a fully automatic busbar punching, shearing, and bending production line. Contact us today to get the latest price of the CNC busbar punching and shearing machine.

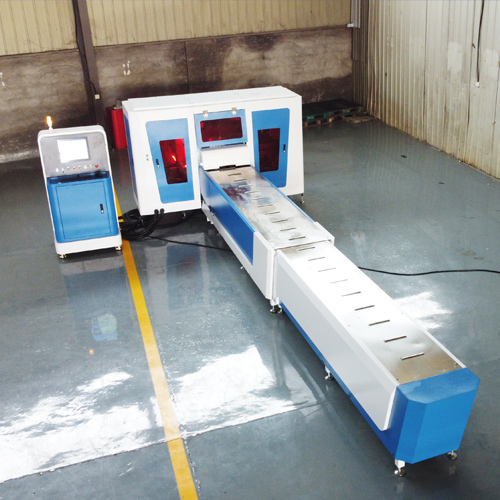

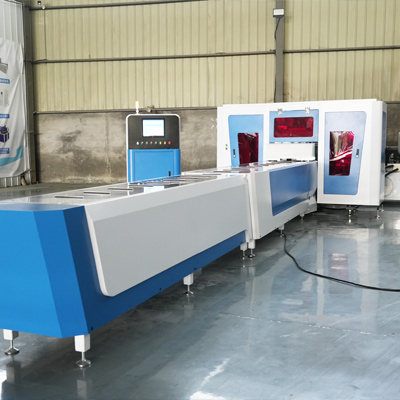

Busbar Punching and Shearing Machine.jpg

Required input data

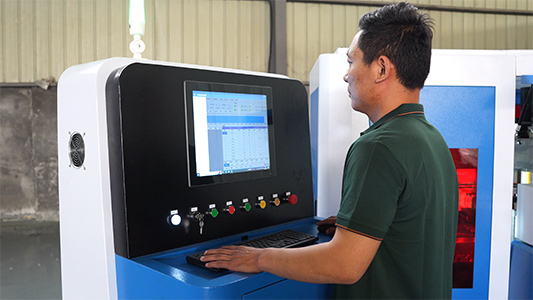

Raw material data:Total busbar length、Busbar width、 Busbar thickness
Punching data:Punching position coordinates (X, Y)、Number of punching holes、Punching spacing
Shearing data:Shearing length、Shearing quantity
Chamfering data:Chamfering diameter
Embossing data:Embossing coordinates

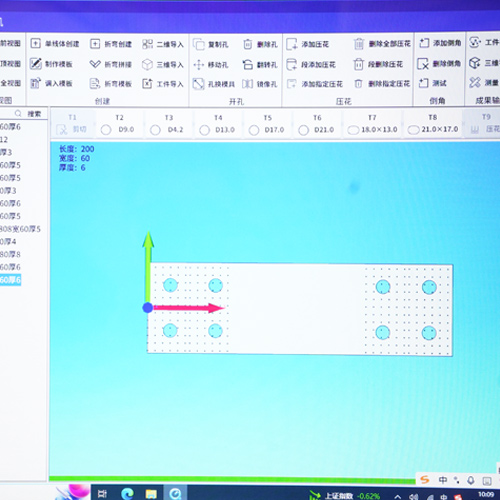

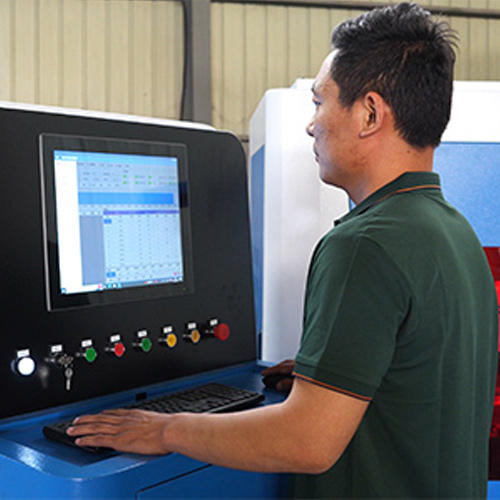

After confirming the parameters, the CNC system automatically generates the processing program and enters the automatic processing mode.

Automatic Feeding and Positioning

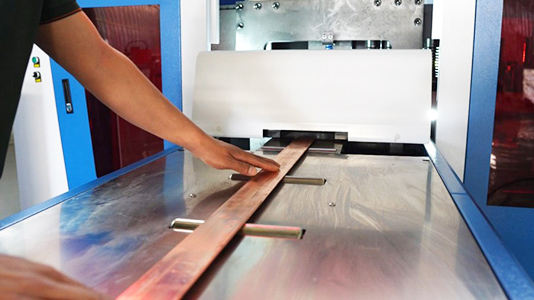

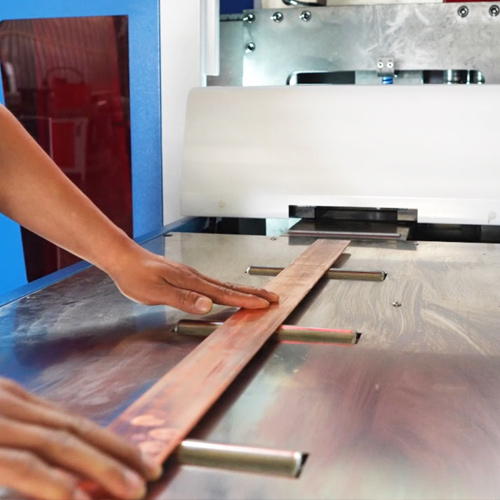

After the program starts, the servo positioning system automatically clamps the busbar and performs precise feeding and positioning according to the set dimensions.The entire process is automatically controlled by the CNC system, which can complete automatic clamping, automatic feeding, automatic positioning, and automatic error compensation.Compared with traditional equipment that requires manual measurement and adjustment, the automatic feeding and positioning system can effectively reduce human errors and improve processing consistency.The automatic feeding system is also a core configuration of CNC busbar processing machines to improve processing accuracy and production efficiency.

Automatic Punching
After the busbar reaches the specified position, the system automatically completes the punching process according to the program.It can continuously process different hole types, such as round holes and slotted holes. Special hole types can be customized with special dies.The entire punching process does not require manual movement of the copper busbar, which improves production efficiency and ensures hole position accuracy.

Automatic Shearing

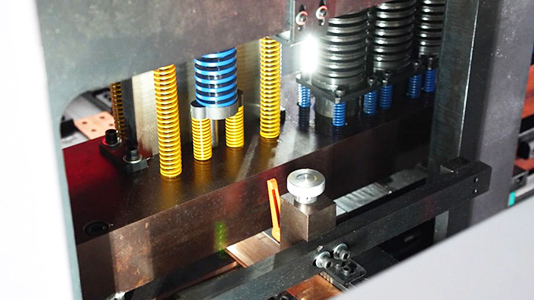

After punching is completed, the tool magazine automatically switches to the shearing die, and the CNC system completes automatic shearing according to the set length.It can achieve continuous processing and batch production. Automatic shearing reduces manual operation, improves processing speed, and ensures that the dimensions of each busbar are consistent.

Finished Product Output

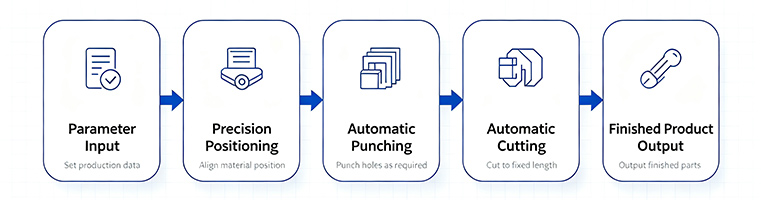

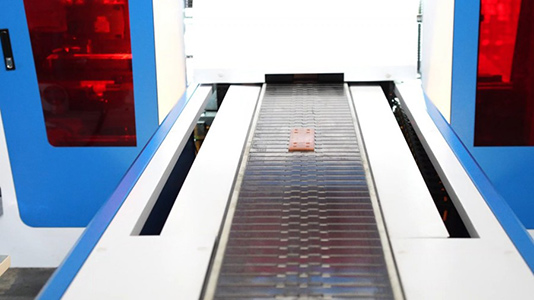

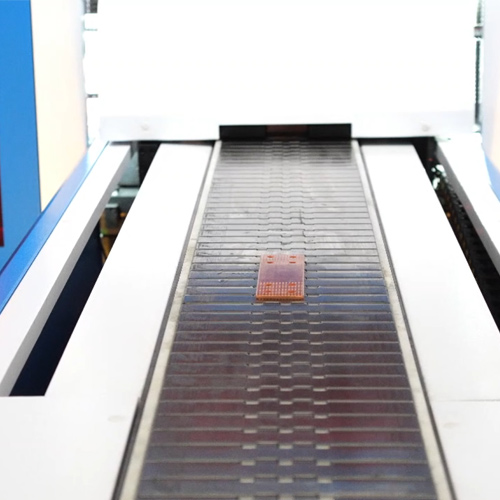

After processing is completed, the finished busbars are automatically output to the material collection platform, realizing a fully automatic processing flow from feeding, positioning, punching, shearing to output.The operator only needs to complete loading and unloading, which greatly reduces labor intensity and improves production efficiency.

Comparison Criteria	Fully Automatic Busbar Punching and Shearing Machine	Traditional Busbar Processing Equipment
Level of automation	CNC system control, automatic positioning, automatic punching, automatic shearing, automatic embossing, and automatic material output	Requires manual measurement, manual positioning, and manual operation
Processing efficiency	Fast processing speed, continuous processing, and high efficiency	Slow processing speed, affected by operator efficiency
Processing precision	Servo positioning system with an accuracy of ±0.2 mm	Manual positioning, which may easily cause errors
Labor costs	One operator can complete the operation, reducing labor costs	Requires multiple operators, increasing labor costs
Ease of operation	Easy operation, simply input parameters to achieve automatic processing	Complicated operation, requiring experienced operators
Production capacity	Suitable for large-volume busbar processing	Suitable for small-batch order processing
Processing consistency	CNC control ensures consistent processing quality	Different operators may produce different processing quality
Processing workflow	Punching, shearing, embossing, and chamfering can be completed in one process	Punching, shearing, embossing, and chamfering need to be completed in multiple processes
Equipment footprint	Integrated machine design, saving more space	Combination of multiple machines, requiring more space
