Busbar Processing Machine
▌Product Description

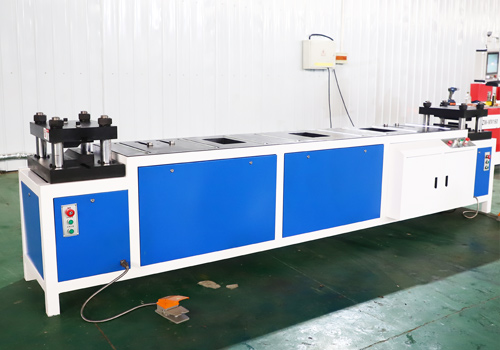

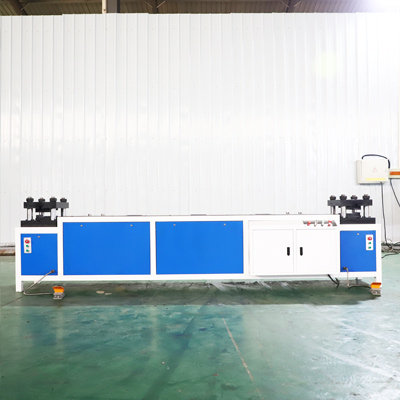

The Double-Head Busbar Bending Machine is a hydraulic busbar bending machine specially designed for busbar trunking production and manufacturing, also known as a double-head busbar press bending machine. The machine adopts a double-head press bending structure, with independent hydraulic systems configured at the left and right ends. The hydraulic systems drive the press bending molds on both sides, allowing the bending of both ends of the busbar to be completed at one time. The operator does not need to repeatedly turn over or change the direction of the busbar, solving the complicated one-sided bending process of traditional single-head bending machines.
▌Parameters and mold configuration
To determine whether a Double-Head Busbar Bending Machine meets your production requirements, you should focus on the processing specifications, bending accuracy, and key mold parameters. Below are the technical specifications of the MXSZW-602 model recommended by Fenghua, a double-head busbar bending machine supplier:
Model | MXSZW-602 |
Maximum Bending Force | 500KN |
Maximum Bending Width | 300mm |
Maximum Bending Thickness | 8mm |
Worktable Size | 4000×600×1200mm |
Main Motor Power | 5.5KW |
Machine Weight | 1100kg |
Bending Dies | 4 Sets |
Standard Accessories | Two foot pedal switches, one set of hex wrenches, one proximity switch, one relay, one set of oil filling equipment, one grease gun |
▌Product video
Note:

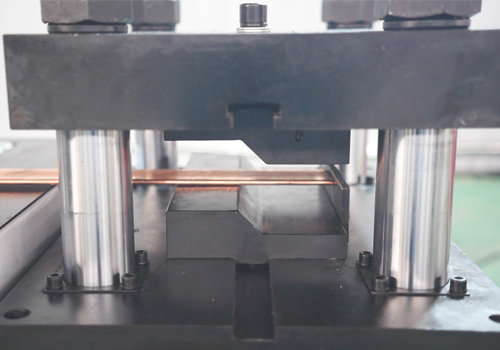

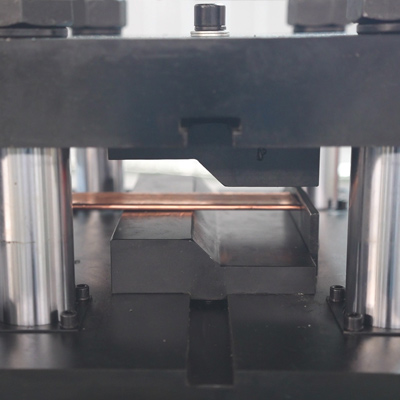

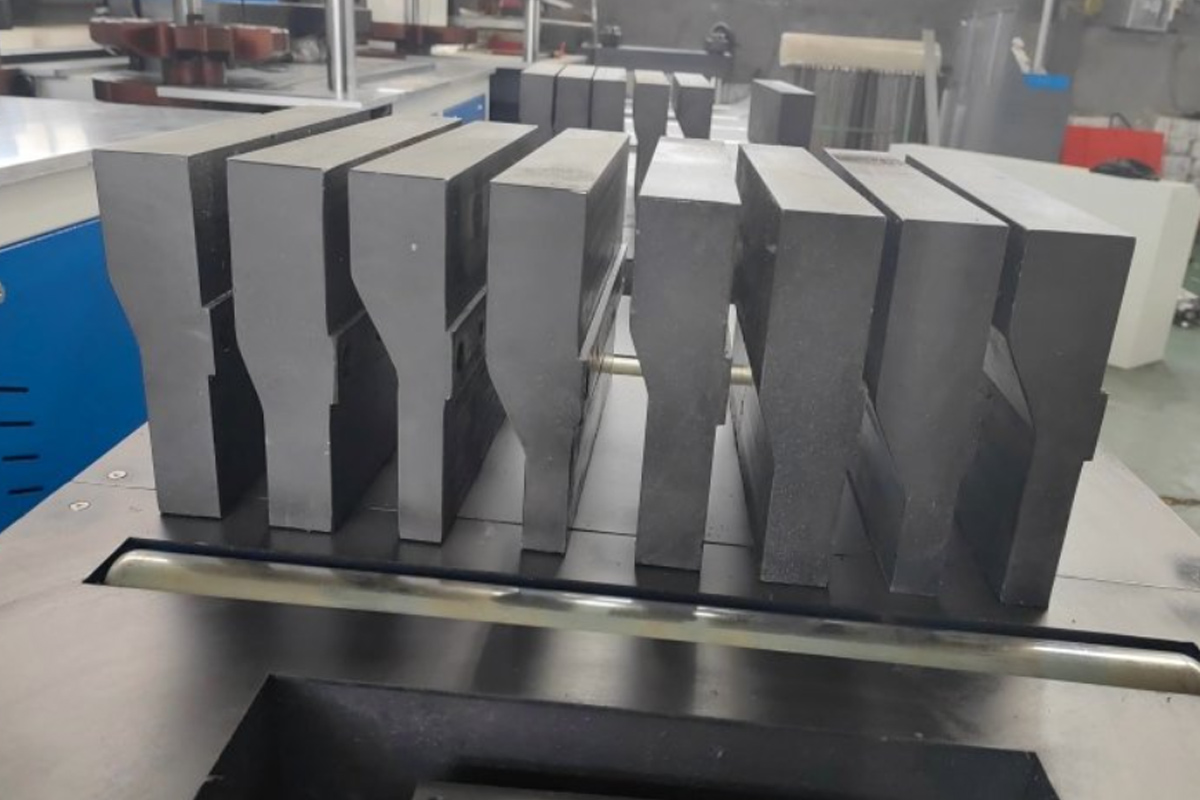

Display of Selected Molds：
 |

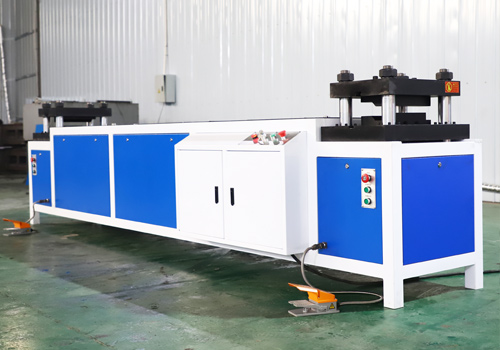

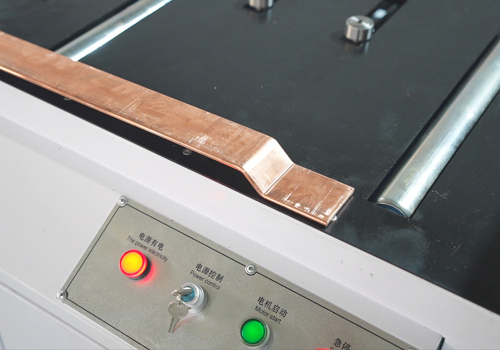

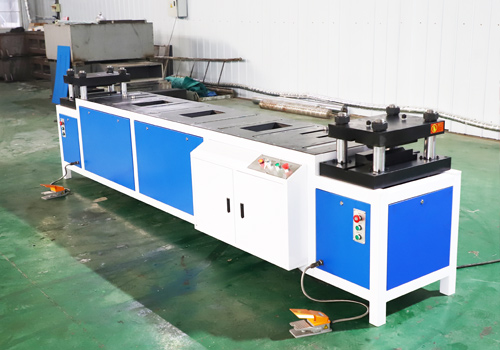

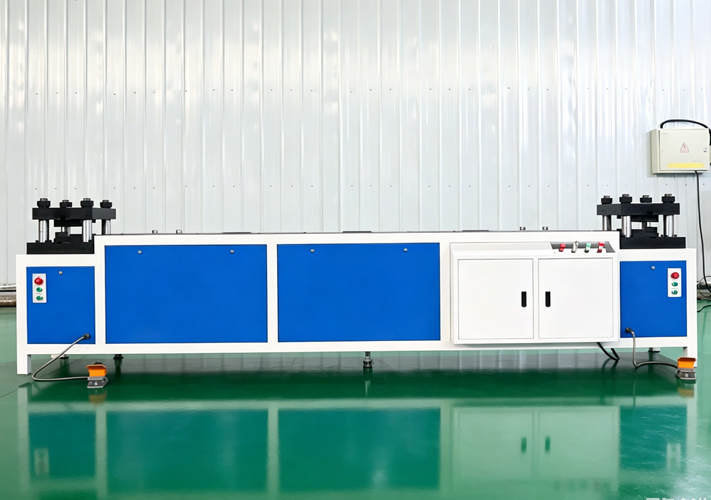

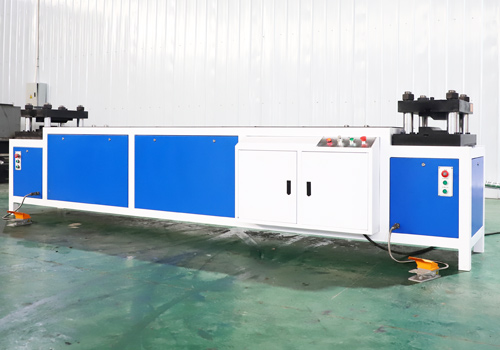

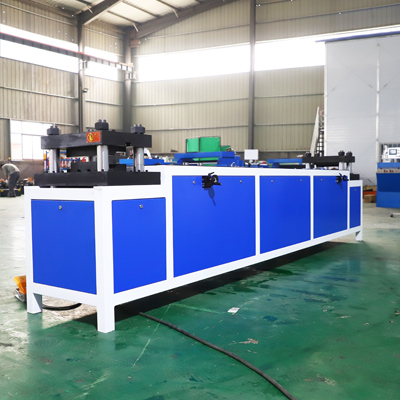

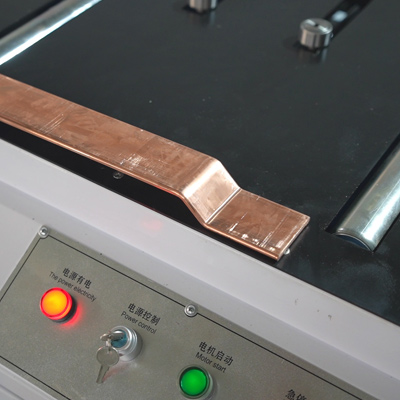

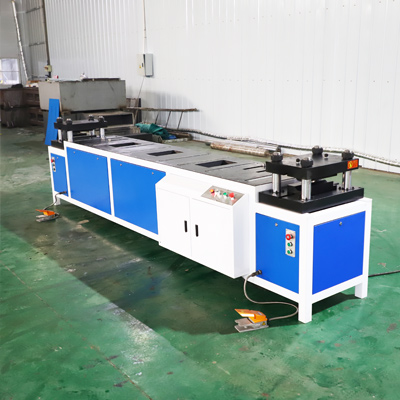

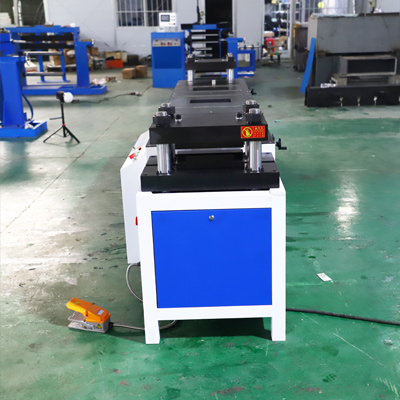

▌Product Details
 |  |  |
 |  |  |
▌Why Choose Us?
1. Source Factory, In-House Production

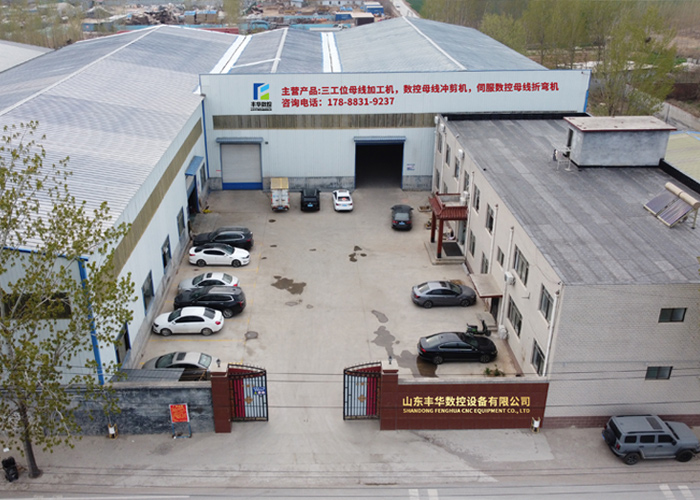

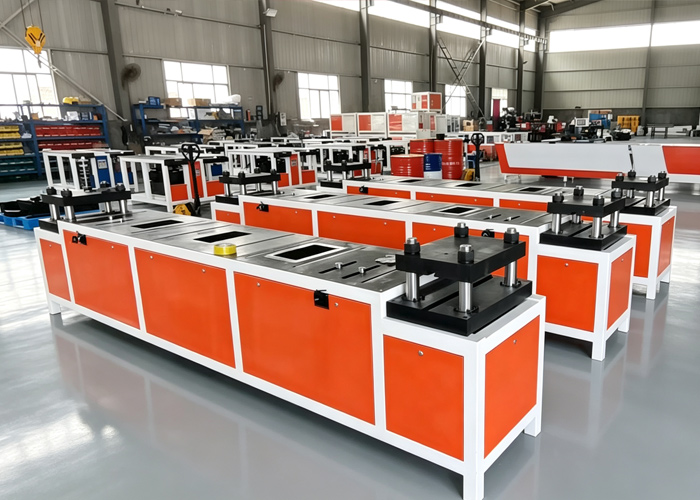

Fenghua CNC is a professional busbar processing equipment manufacturer with a complete production system covering machine assembly, mechanical machining, mold production, and inspection. The core components of the Double-Head Busbar Bending Machine are independently machined and assembled in our factory, without outsourcing or assembly from external components, ensuring equipment quality, delivery time, and after-sales service from the source.
2. Special Bending for Busbar Trunking, Improving Processing Efficiency
The Double-Head Busbar Bending Machine is mainly used in the busbar trunking manufacturing industry and can be used as a busbar trunking bending machine. The double-head structure can complete double bending forming at both ends of the busbar at one time. The operator does not need to repeatedly turn over or change the direction of the busbar, improving busbar trunking processing efficiency.
3. Independent Hydraulic Systems at Both Ends for More Flexible Processing
The two ends of the Double-Head Busbar Bending Machine are respectively equipped with high-tonnage hydraulic systems and two foot switches. It can perform bending independently at one end or synchronous bending at both ends. It is very flexible for processing busbars of different lengths and specifications.
4. Comprehensive After-Sales Service System
Fenghua CNC provides overseas customers with installation guidance, operation training, technical support, and after-sales service for Double-Head Busbar Bending Machines, helping customers quickly master the operation of the machine and ensuring its long-term stable operation.
▌Frequently Asked Questions
1. What materials is the Double-Head Busbar Bending Machine mainly used to process?
The Double-Head Busbar Bending Machine is mainly used for double-head bending of copper busbars and aluminum busbars, and is mainly used in the busbar trunking industry.
2. What are the advantages of the Double-Head Busbar Bending Machine compared with an ordinary single-head bending machine?
The double-head structure can complete the bending of both ends of the busbar at the same time. Compared with traditional single-head equipment, it reduces manual handling and adjustment steps, not only improving processing efficiency, but also reducing manual operation errors and improving product consistency. It is more suitable for mass production.
3. What is the maximum width and thickness of copper and aluminum busbars that the Double-Head Busbar Bending Machine can process?
The maximum processing range of the Double-Head Busbar Bending Machine is 300 mm × 8 mm (width × thickness).
4. Can the Double-Head Busbar Bending Machine be customized?
Yes, it can be customized. We can provide customized solutions according to the customer's processing requirements, including processing dimensions, bending mold configuration, electrical standards, and control system. If you would like to learn more about busbar processing equipment and different processing solutions, you can view our Busbar Processing Machine series.
5. Why is the Double-Head Busbar Bending Machine more suitable for busbar trunking manufacturers?
Busbar trunking production usually requires the processing of a large number of connecting copper bars. Traditional equipment requires manually adjusting and turning over the busbar multiple times, resulting in relatively low processing efficiency. The Double-Head Busbar Bending Machine can complete bending at both ends at one time, improving production efficiency, reducing labor costs, and ensuring processing consistency for batch products. It is an ideal machine for busbar trunking manufacturers to improve automated production efficiency.
6. Does the Double-Head Busbar Bending Machine support customized bending molds?
Yes. We can provide customized mold solutions according to the customer's busbar trunking product production requirements. Customers can provide design drawings, and we will produce the molds according to the drawings. We can also design matching press bending molds according to the customer's requirements to ensure that the processing results meet the customer's production requirements.
