Busbar Processing Machine
▌Product Description
CNC Busbar Bending Machine is a high-precision busbar bending machine that adopts a CNC control system and uses servo motors as the main drive. It is mainly used for high-precision bending of copper busbars and aluminum busbars. The machine is equipped with a self-developed CAD/CAM software system, supporting direct import of 2D and 3D busbar drawings and automatic generation of busbar processing programs. It improves bending accuracy and bending efficiency.
The MXZW-200 CNC Busbar Bending Machine can process copper and aluminum busbars with a maximum size of 200 × 16 mm (width × thickness). It is suitable for industries such as high- and low-voltage switchgear, transformers, and new energy equipment.
▌Parameters
To determine whether a CNC busbar bending machine meets your production requirements, you should focus on the processing specifications, bending accuracy, and key mold parameters. Below are the technical specifications of the MXZW-200 model recommended by Fenghua CNC, a busbar bending machine supplier:
| Item | 参数值 |
| Model | MXZW-200 |
| Nominal Pressure | 400 KN |
| Bending Accuracy | +/-0.3° |
| Back Gauge Accuracy | +/-0.3 mm |
| Main Motor Power | 5.5 Kw |
| Main Shaft Stroke | 210 mm |
| Maximum Flat Bending Size | 200mm*16mm |
| Back Gauge Length | 1500 mm |
| Maximum Edgewise Bending Size | 120mm*12mm |
| Machine Weight | 3000 KG |
| Overall Dimensions | 3450mm*1200mm*1750mm |
▌Product video
▌Molds and Accessories
| Mold / Accessory | Quantity |
| R3 Flat Bending Mold | 1set |
| R5 Flat Bending Mold | 1set |
| R60 Edgewise Bending Mold | 1set |

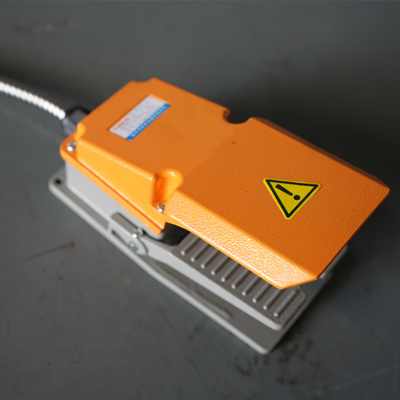

| Foot Switch | 1set |
| English Manual | 1set |
| English Factory Inspection Report | 1set |
| Standard Tools | 1set |
Note:
The above are the standard mold accessories for the MXZW-200 CNC Busbar Bending Machine. Before the machine is delivered, the specifications of the bending molds can be adjusted according to the customer's actual processing requirements. If you have special processing requirements, you can provide us with busbar processing mold drawings or processing requirements and send them to our technical engineers via Gmail or WhatsApp. We will design and customize the molds according to your requirements.

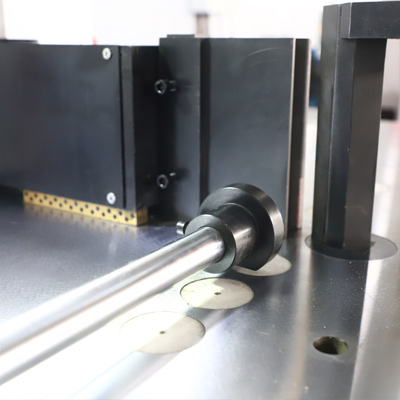

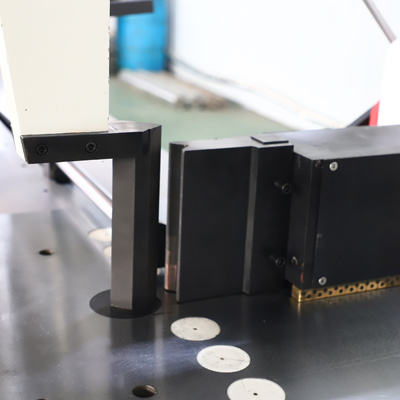

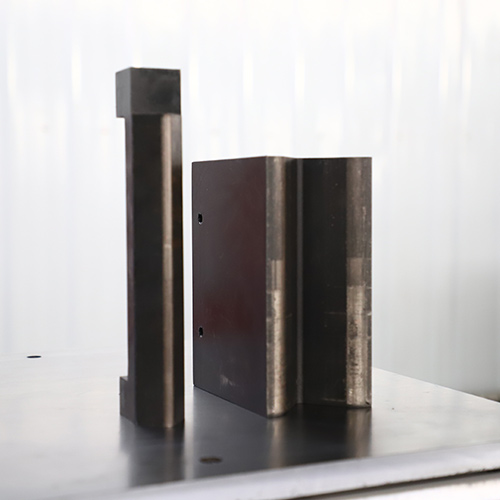

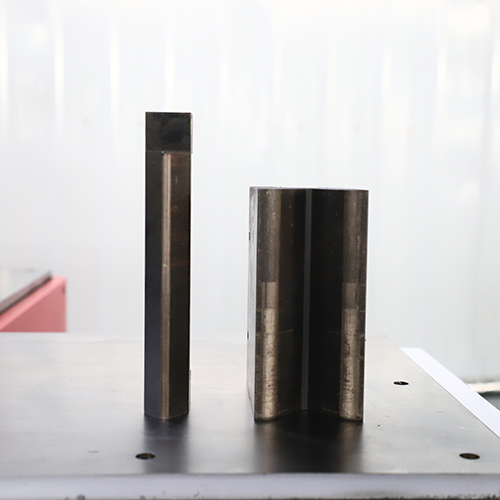

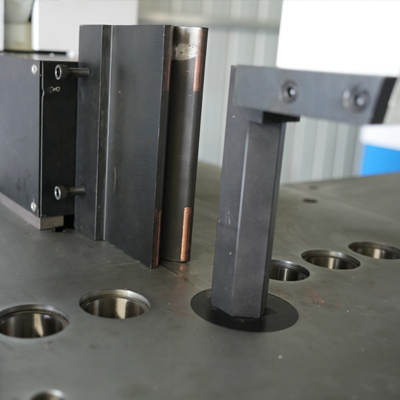

Display of Selected Molds：
 |  |

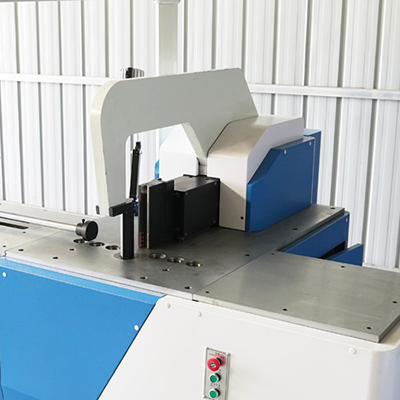

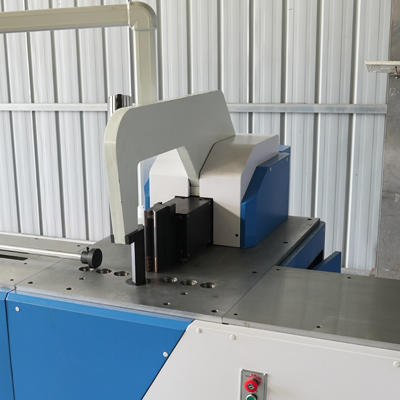

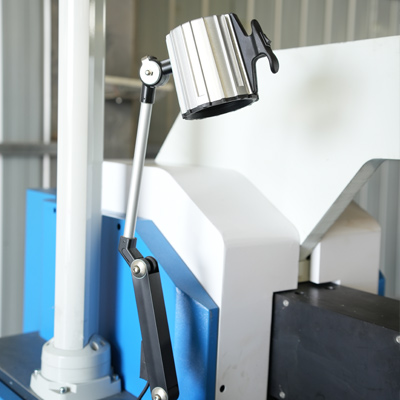

▌Product Details
 |  |  |  |
 |  |  |  |
▌Why Choose Us?

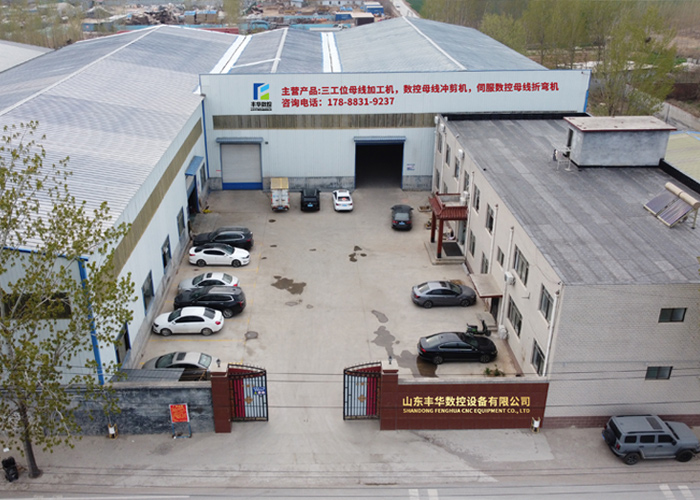

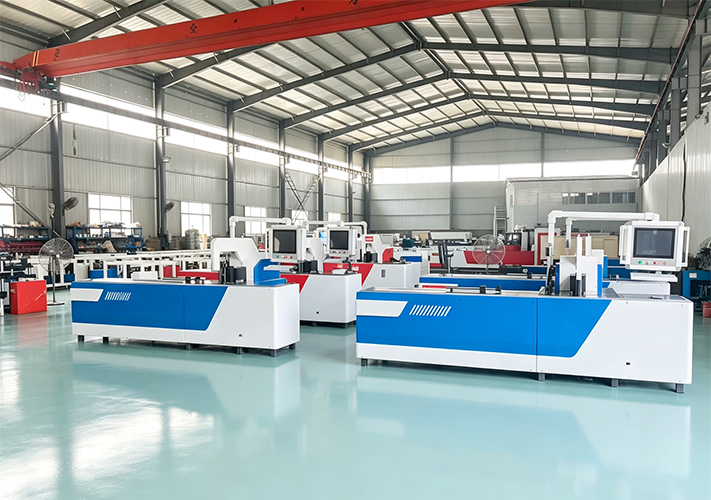

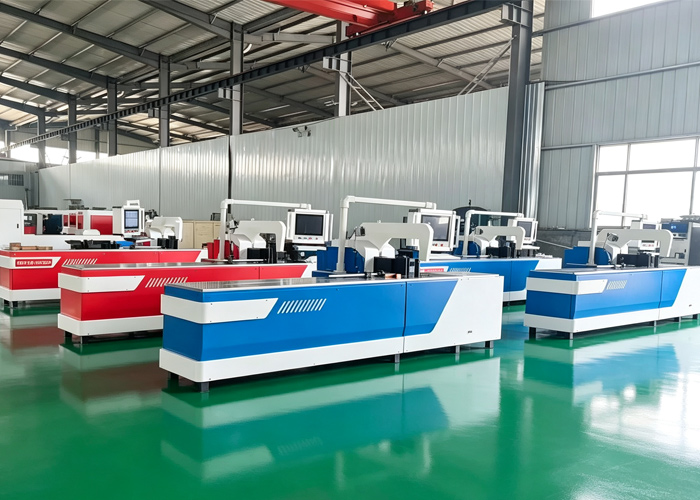

Fenghua CNC is a professional busbar processing equipment manufacturer with a complete production system covering machine assembly, mechanical machining, mold production, and inspection. The core components of the CNC Busbar Bending Machine are independently machined and assembled in our factory, without outsourcing or assembly from external components. This ensures equipment quality, delivery time, and after-sales service from the source.
The machine uses a high-inertia servo motor as the main drive, combined with a high-precision planetary gearbox and ground-grade ball screw transmission, making the bending process more stable and precise. This ensures consistent bending angles and dimensions during continuous processing.

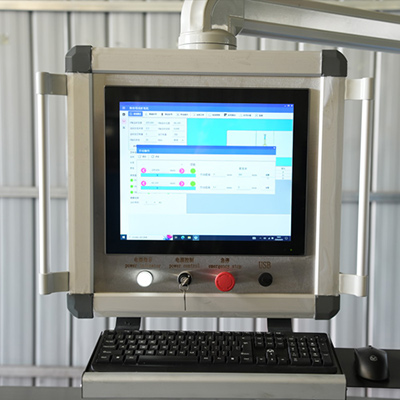

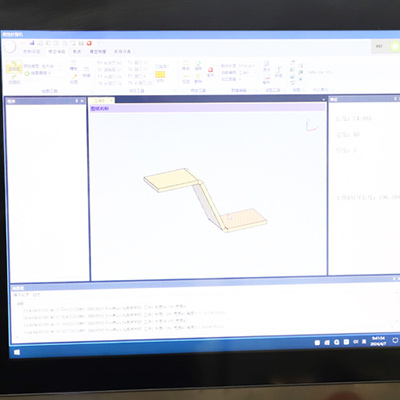

The machine is equipped with self-developed CAD/CAM software, supports 2D/3D drawings, automatically generates processing programs, and provides bending unfolding calculations and processing program simulation. It can also display 3D machining results, improving processing efficiency.
Fenghua CNC provides overseas customers with installation guidance, operation training, technical support, and after-sales service for CNC Busbar Bending Machines. We help customers quickly master the operation of the machine and ensure its long-term stable operation.
▌Frequently Asked Questions
The CNC Busbar Bending Machine is mainly used for high-precision bending of copper busbars and aluminum busbars. It can process busbars of different specifications and is widely used in switchgear, distribution cabinets, and the electrical equipment manufacturing industry.

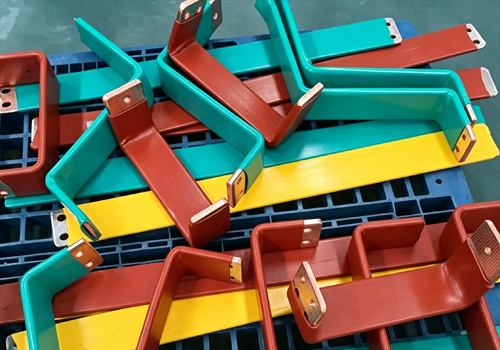

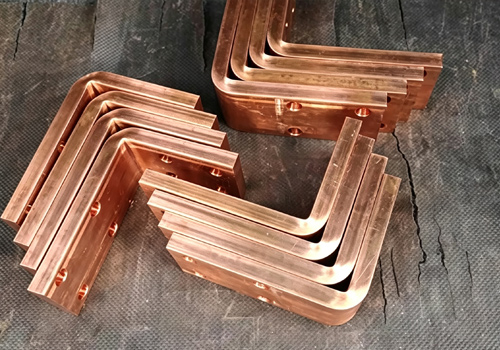

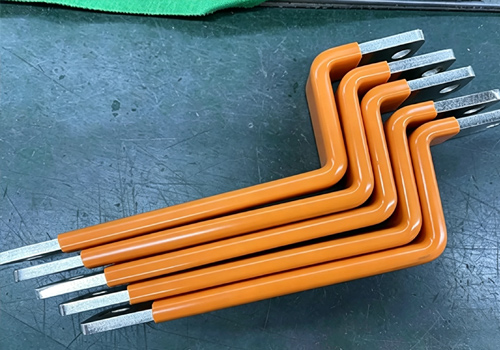

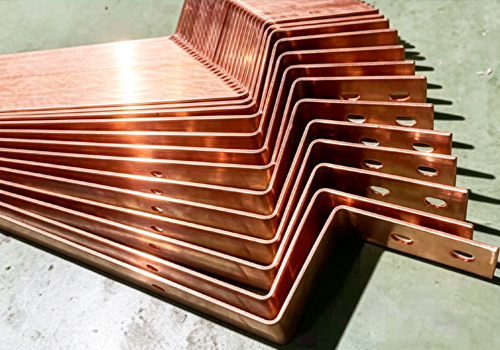

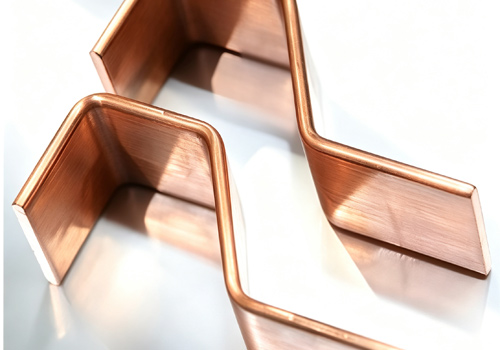

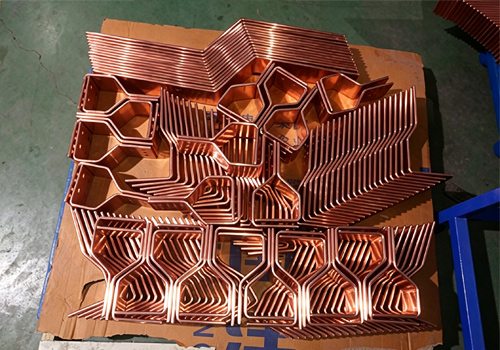

The machine is mainly used for bending copper and aluminum busbars and can perform flat bending, edgewise bending, U-shaped bending, Z-shaped bending, right-angle bending, and continuous bending at multiple angles. If you also need busbar punching, cutting, and bending, you can learn more about our 3-in-1 Busbar Processing Machine.
The MXZW-200 Busbar Bending Machine can process copper and aluminum busbars up to 200 mm × 16 mm (width × thickness). If you have different processing specifications, Fenghua CNC can provide a suitable model of busbar processing equipment according to your requirements.

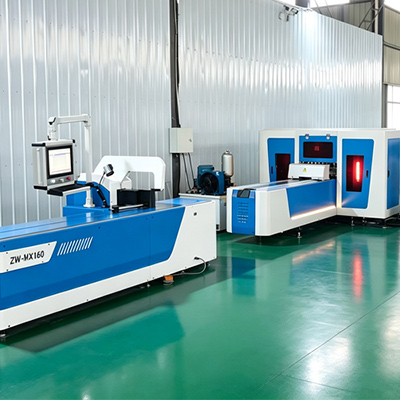

The MXZW-200 CNC Busbar Bending Machine can share processing data with the CJ-MX-702 CNC Busbar Punching and Shearing Machine, enabling data linkage for punching, cutting, and bending processes. Through one-time programming, the two machines can work together for processing, reducing repeated data input and improving busbar processing efficiency.
Yes, it can be customized. We can provide customized solutions according to the customer's processing requirements, including processing dimensions, mold configuration, and electrical standards.
Yes. The MXZW-200 CNC Busbar Bending Machine is equipped with a self-developed CAD/CAM software system, which can directly import CAD drawings and automatically generate processing programs, reducing manual programming time and improving busbar bending efficiency and processing accuracy.
Fenghua CNC provides overseas customers with technical consultation, installation guidance, operation training, spare parts support, and after-sales service, helping customers quickly put the machine into production and ensuring its long-term stable operation.
