▌Product Description

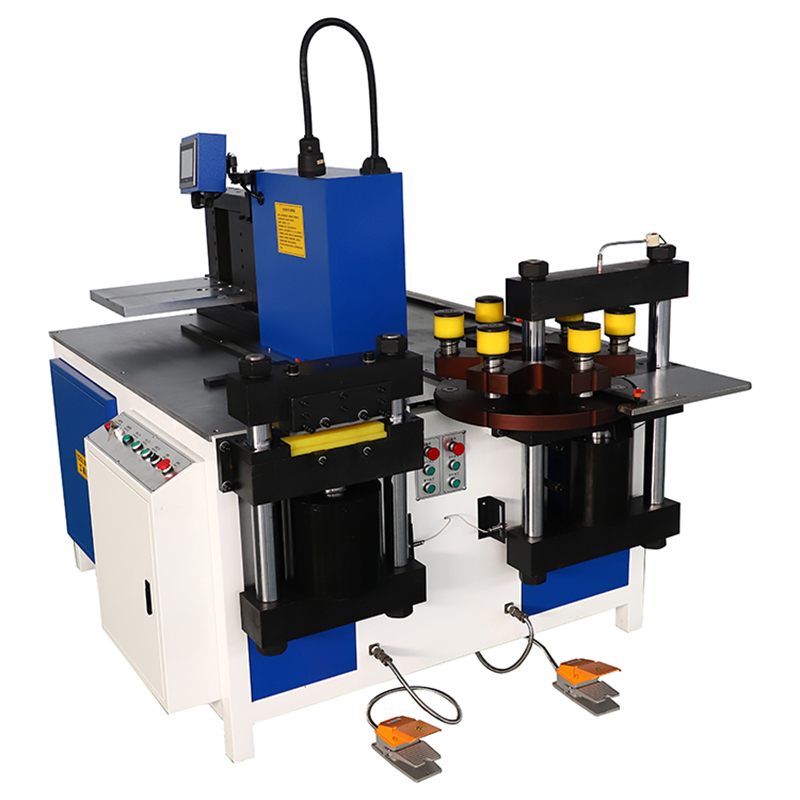

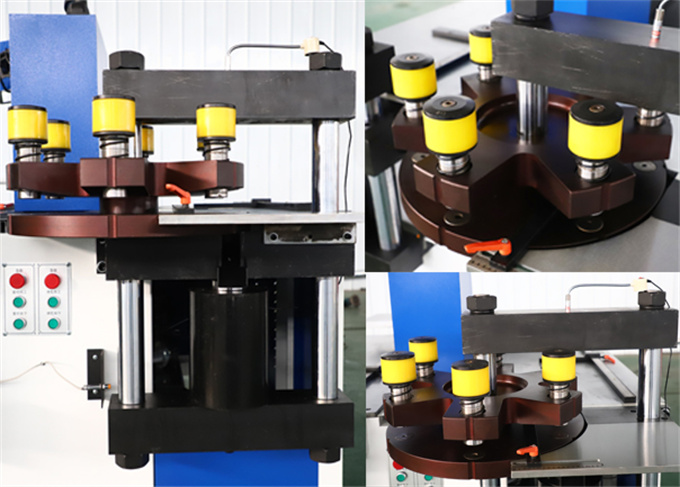

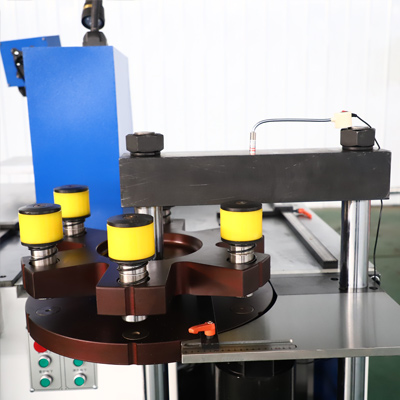

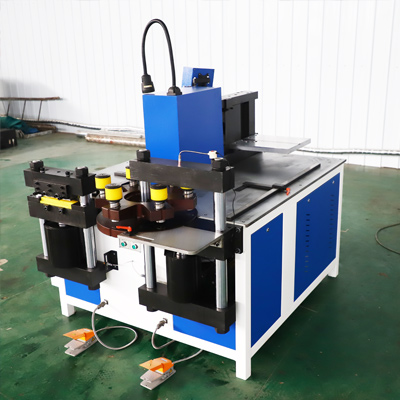

MX-BSSK503 Busbar Punching Machine is a hydraulic machine specially designed for copper and aluminum busbar punching. The punching unit adopts a high-tonnage hydraulic drive system and a turret-style tooling system, which allows up to 6 punching molds to be installed at the same time. By quickly changing different molds, the machine improves processing efficiency.The machine can perform round hole and oblong hole punching, and also supports busbar chamfering processing. In addition, it integrates cutting and bending functions to meet multi-process busbar fabrication requirements. It can process copper and aluminum busbars up to 260×16mm (width × thickness).The MX-BSSK503 Busbar Punching Machine is widely used in switchgear, distribution cabinets, transformers, and electrical equipment manufacturing industries, helping companies improve production efficiency and achieve efficient and reliable busbar processing.


▌Parameters

The technical parameters of the MX-BSSK503 Busbar Punching Machine help users quickly understand its processing range, maximum processing capacity, and key performance specifications. The detailed technical parameters are as follows:

▌Product video

▌Molds and Accessories

Note:

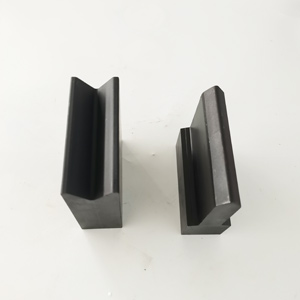

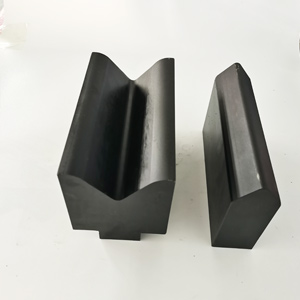

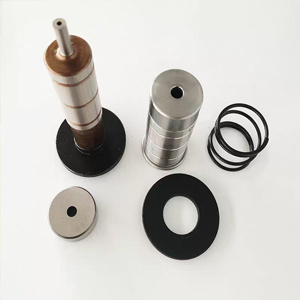

The above are the standard mold accessories for the MX-BSSK503 Busbar Punching Machine. Before shipment, the punching mold specifications can be adjusted according to the customer's actual processing requirements. In addition to the standard molds, we can also provide customized molds according to different application needs, including busbar twisting molds, cable lug molds, indentation-free molds, one-step forming molds, and rounding molds.If you have special copper busbar processing requirements, you can provide us with busbar mold drawings or detailed processing requirements. Please send them to our technical engineers via email at fenghuacnc@gmail.com or WhatsApp. We will design and customize the molds according to your specific requirements.

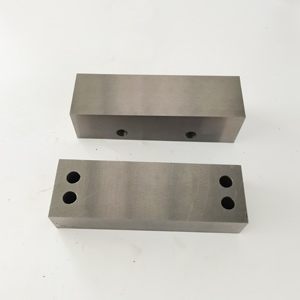

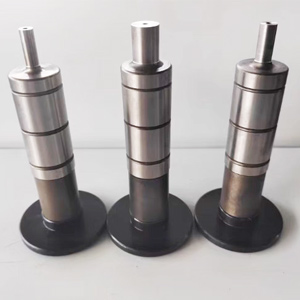

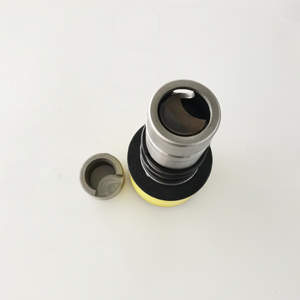

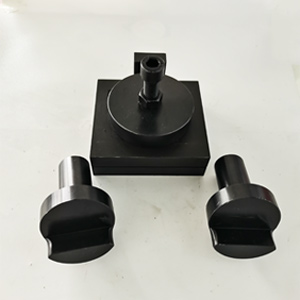

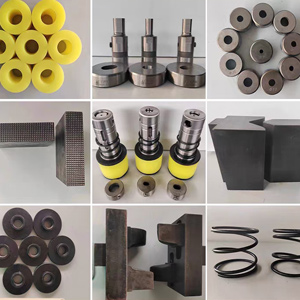

Display of Selected Molds：

▌Product Details

▌Why Choose Us?

1. Source Factory, Independent Production
Fenghua CNC is a professional manufacturer of busbar processing equipment with complete production capabilities, including machine assembly, mechanical machining, mold manufacturing, and quality inspection. The core components of the Busbar Punching Machine are independently processed and assembled in our factory. We do not outsource production or assemble machines from third-party components, ensuring product quality, delivery time, and reliable after-sales service from the source.

2. Efficient Punching with Multi-Process Capabilities
The Busbar Punching Machine is designed for copper and aluminum busbar processing. While providing efficient punching performance, it also integrates cutting and bending functions, allowing the machine to perform multiple processing operations according to production requirements. This improves equipment utilization and meets different busbar processing needs.

3. High-Tonnage Hydraulic System for Stable Processing

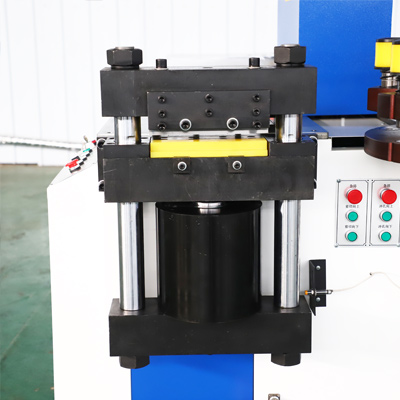

The Busbar Punching Machine adopts an enlarged hydraulic cylinder design, with each of the three processing units equipped with a 500 kN pressure output. The hydraulic systems provide stable power for punching, cutting, and bending operations, helping reduce processing errors and improve busbar processing quality and production efficiency.

4. Complete After-Sales Service System
Fenghua CNC provides overseas customers with equipment installation guidance, operation training, technical support, and after-sales service. We help customers quickly master equipment operation and ensure long-term stable performance.

▌Frequently Asked Questions

Frequently Asked Questions

1. What materials can the Busbar Punching Machine process?
The Busbar Punching Machine is mainly used for punching copper and aluminum busbars. It can meet the hole processing requirements of different busbar sizes and is widely used in switchgear, distribution cabinets, and electrical equipment manufacturing industries.

2. What processing operations can the Busbar Punching Machine perform?
The Busbar Punching Machine is mainly designed for copper and aluminum busbar punching. It can perform round hole and oblong hole punching, and can also complete busbar chamfering by changing molds. In addition, the machine integrates cutting and bending functions, allowing it to perform various bending operations such as L-shaped bending, Z-shaped bending, U-shaped bending, and flat bending to meet different production requirements.

3. What is the maximum processing size of this Busbar Punching Machine?
The MX-BSSK503 Busbar Punching Machine can process copper and aluminum busbars with a maximum size of 260 × 16 mm (width × thickness). If you have processing requirements for different specifications, you can view the 3-in-1 Busbar Processing Machine series.

4. What diameter of round holes can the Busbar Punching Machine process?
The punching unit uses a 50-ton enlarged hydraulic cylinder and can process round holes from φ4.3mm to φ34mm, meeting the requirements of different busbar connection hole sizes.

5. Can the Busbar Punching Machine be customized?
Yes. We can provide customized solutions according to customers’ processing requirements, including processing sizes, mold configurations, and electrical standards. For higher automation requirements, customers can choose Fenghua CNC automatic or CNC busbar processing equipment.

6. What drive system does the Busbar Punching Machine use?
The Busbar Punching Machine adopts a hydraulic drive system with a maximum output pressure of 500 kN, providing stable power for punching, cutting, and bending operations to ensure reliable and consistent processing performance.

7. What services are provided for overseas customers purchasing a Busbar Punching Machine?
Fenghua CNC provides overseas customers with technical consultation, installation guidance, operation training, spare parts support, and after-sales service, helping customers quickly start production.
