3-in-1 Busbar Machine
▌Product Description

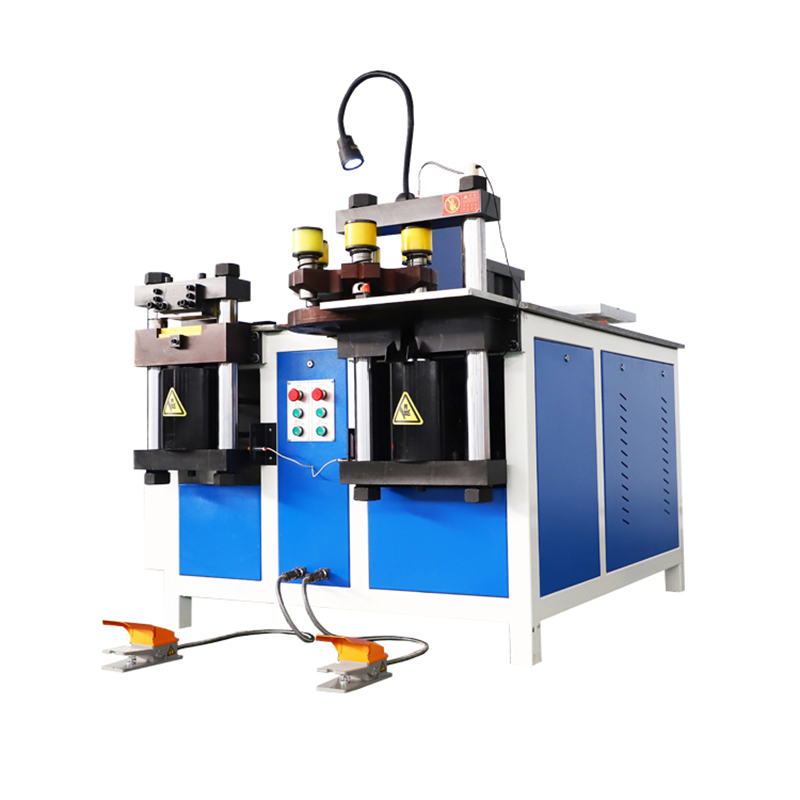

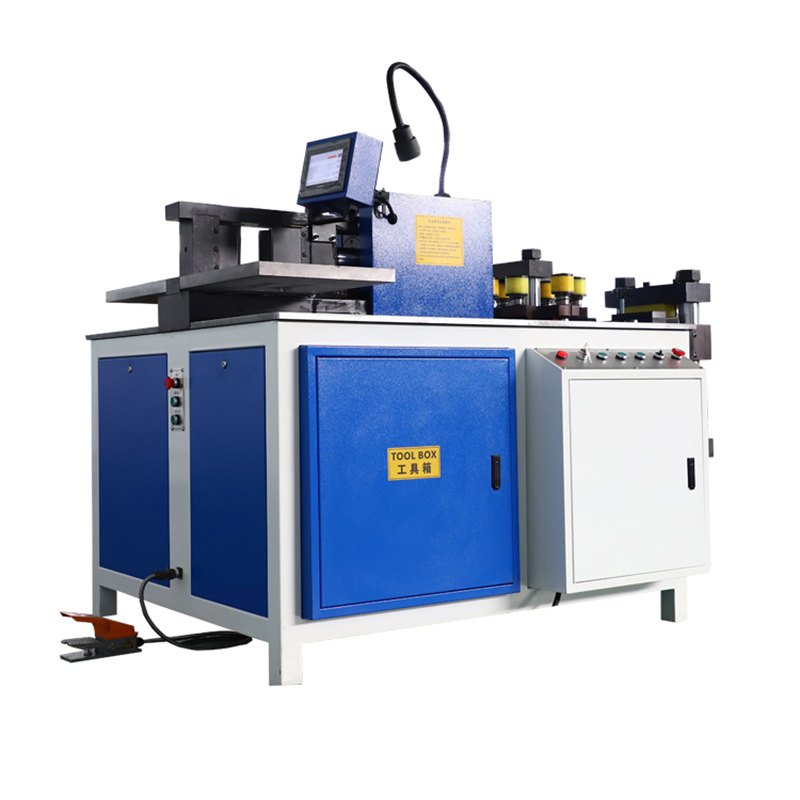

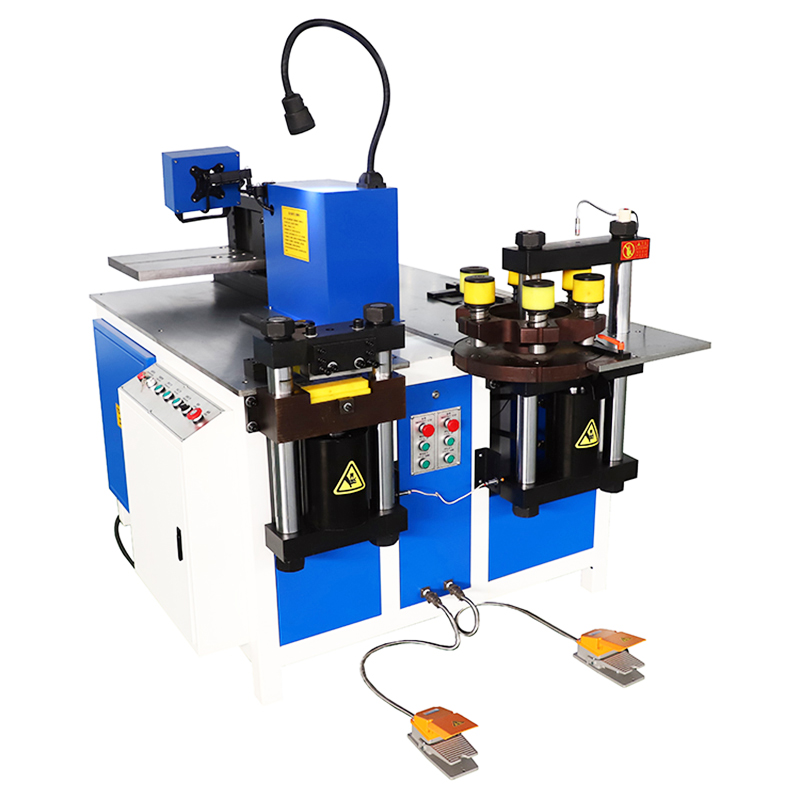

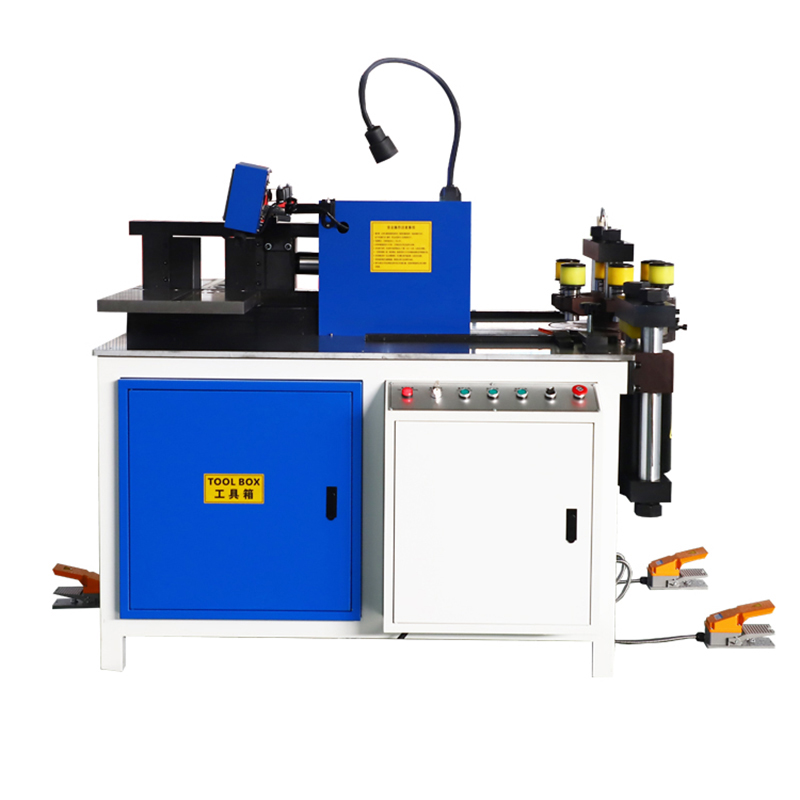

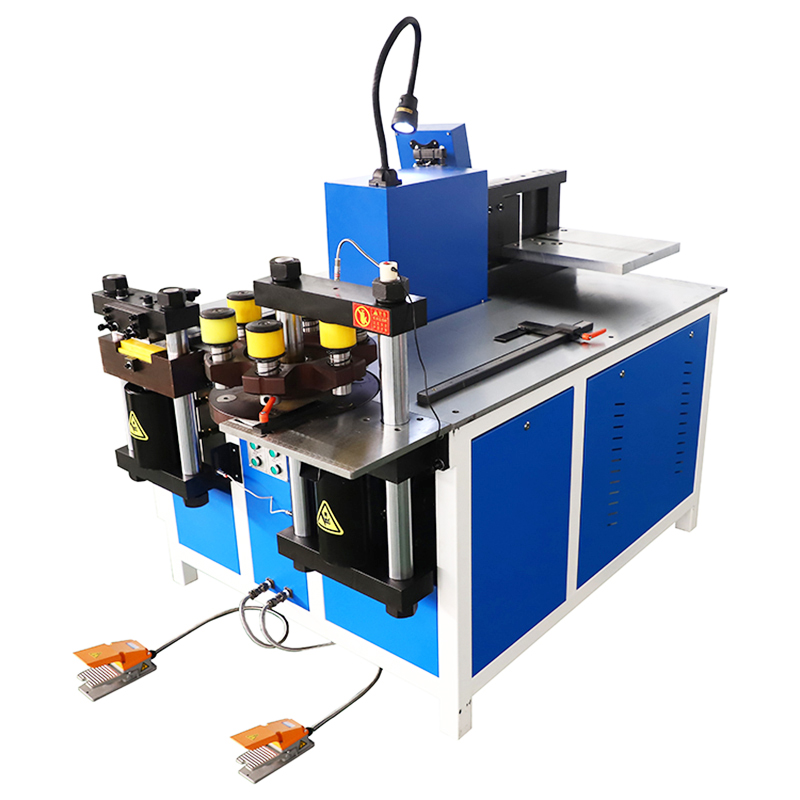

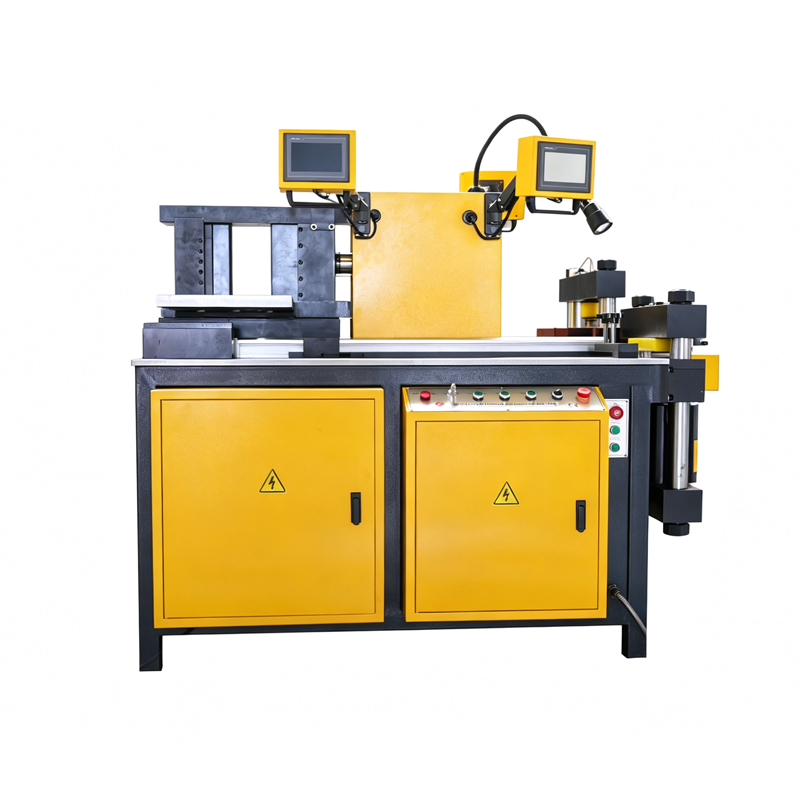

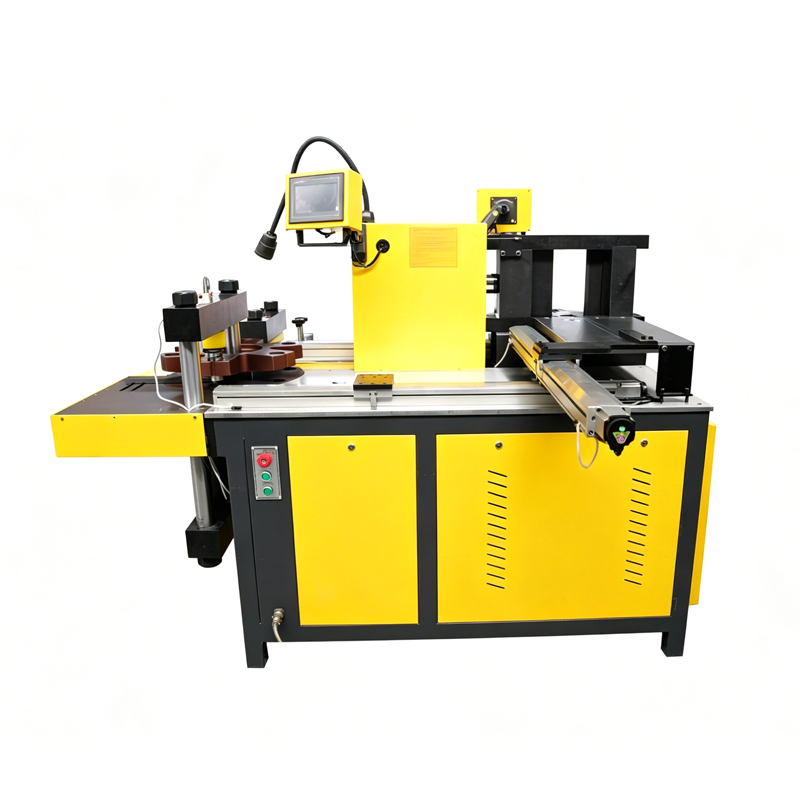

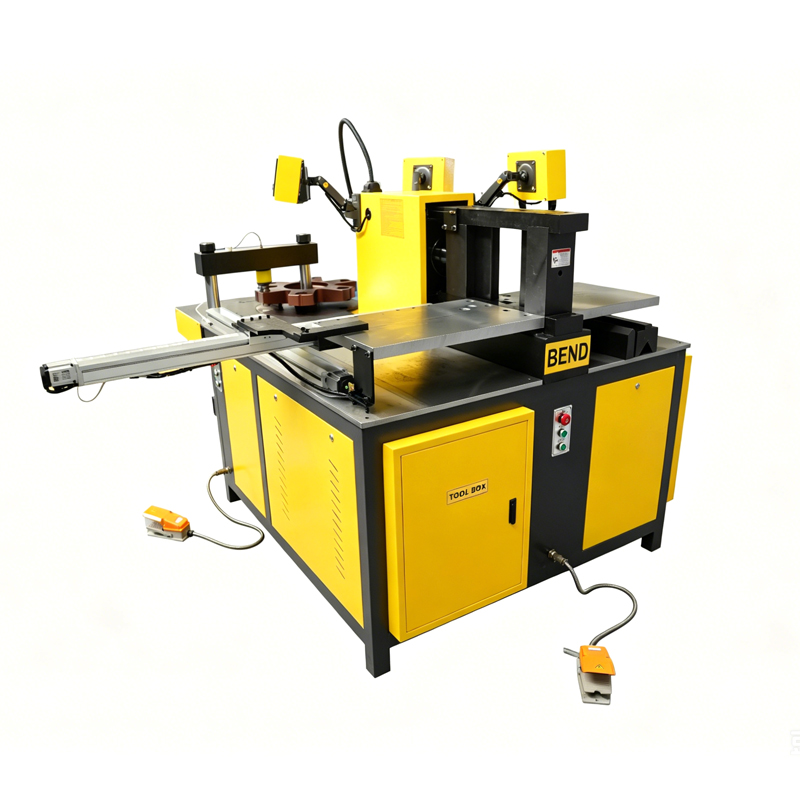

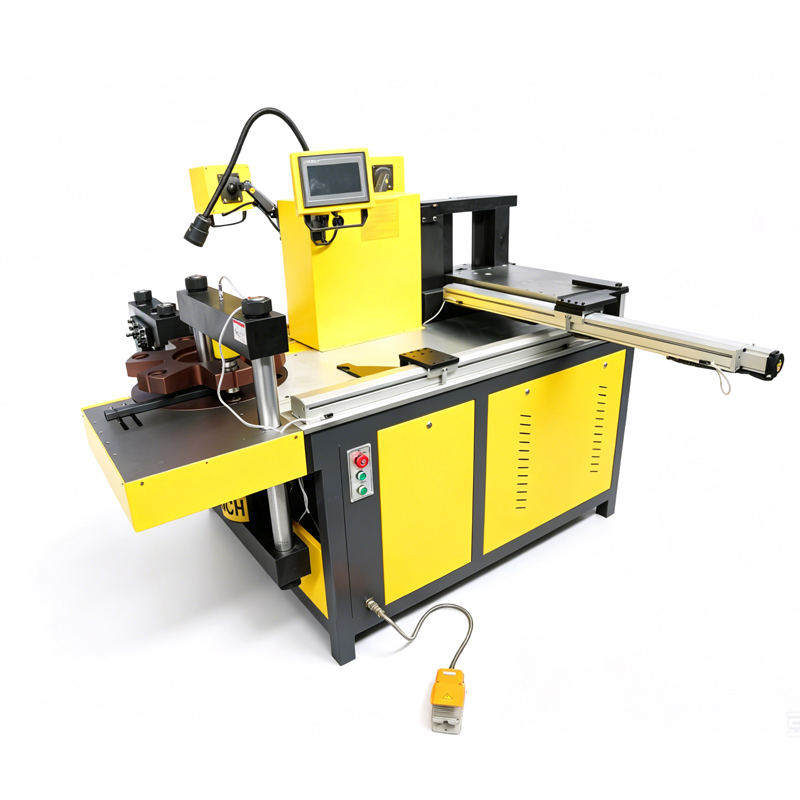

Busbar Punching Bending Cutting Machine integrates punching, cutting, and bending functions into one busbar processing machine. The three units are all driven by 7.5 kW motors with hydraulic systems, which can output 80-ton hydraulic force. The three working stations can operate simultaneously without interference. The machine adopts Siemens PLC control and is equipped with three servo positioning systems, which can realize automatic positioning during the busbar processing process of the three units. This greatly improves processing efficiency.
The machine can process copper and aluminum busbars with a maximum size of 300 × 20 mm (width × thickness). It is suitable for the manufacturing of switchgear, distribution cabinets, and electrical complete equipment, helping enterprises improve production efficiency and achieve efficient and reliable busbar processing.
▌Parameters
The technical parameters of the NCZMXK-803-3-S Busbar Punching Bending Cutting Machine help users quickly understand its processing range, maximum processing capacity, and key performance specifications. The detailed technical parameters are as follows:
| Parameter | NCZMXK-803-3-S |
|---|---|
| Maximum Punching Force | 800 kN |
| Punching Hole Diameter Range | φ4.3–φ34 mm |
| Maximum Punching Width/Thickness | 300 mm / 20 mm |
| Number of Punching Stations | 6 stations |
| Punching Servo Positioning Accuracy | ±0.2 mm |
| Punching Servo Positioning Length | 0–1000 mm (customizable) |
| Punching Servo Positioning Width | 0–300 mm (customizable) |
| Maximum Bending Force | 800 kN |
| Maximum Bending Width/Thickness | 300 mm / 20 mm |
| Maximum Edgewise Bending Size | 10 × 100 mm |
| Bending Servo Positioning Accuracy | ±0.2 mm |
| Bending Servo Positioning Length | 0–800 mm (customizable) |
| Maximum Shearing Force | 800 kN |
| Maximum Shearing Width/Thickness | 300 mm / 20 mm |
| Shearing Servo Positioning Accuracy | ±0.2 mm |
| Shearing Servo Positioning Length | 0–1000 mm (customizable) |
| PLC System | Siemens |
| PLC Controllers | 3 |
| Touch Screens | 3 |
| Motor Power | 3 × 7.5 kW |
| Standard Voltage | 380 V, 50 Hz |
| Operating Language | Chinese / English |
▌Product video
▌Molds and Accessories
Standard Dies Equipped with the Main Machine | |

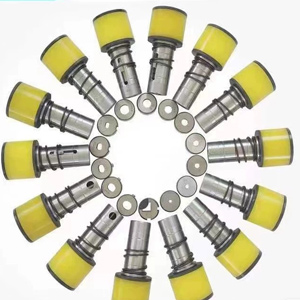

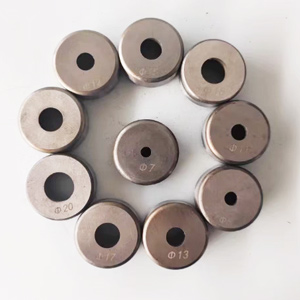

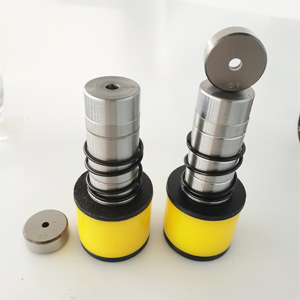

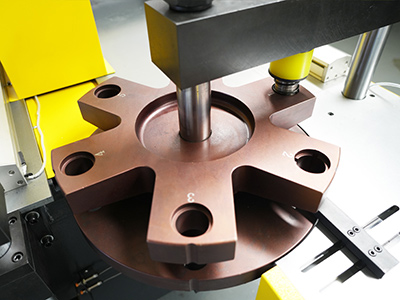

Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |

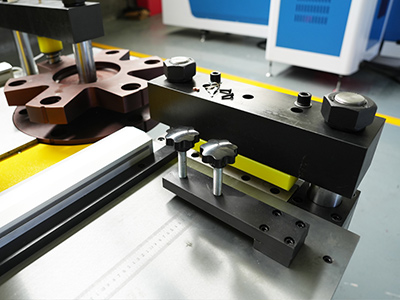

Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |

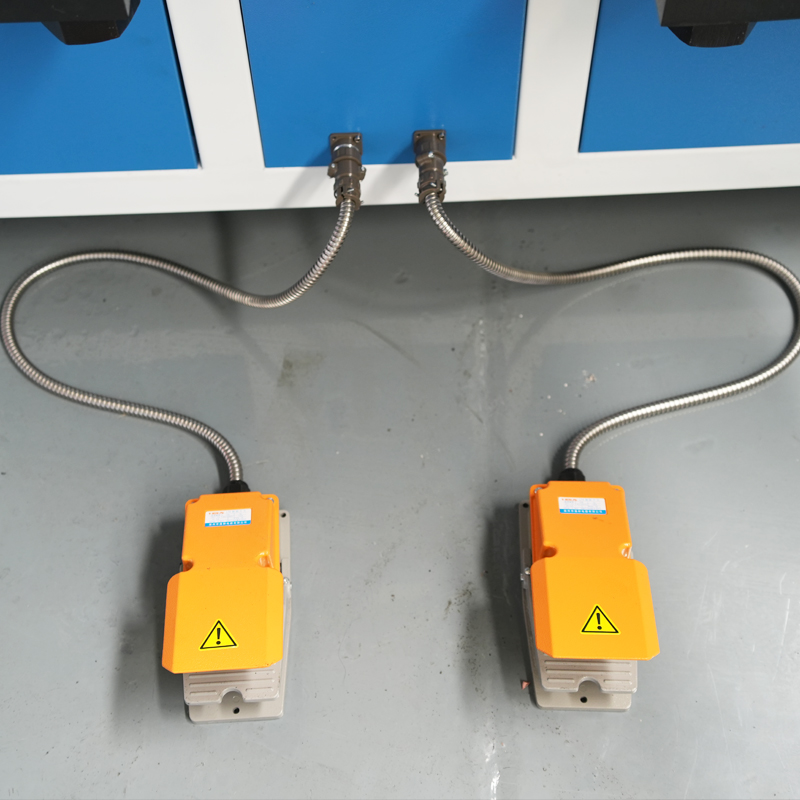

Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |

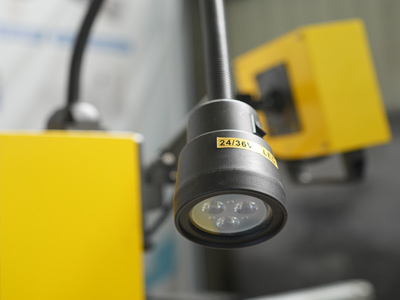

Work Light | 1 pc |
Punch Pin | 1 pc |
Note:
The above are the standard molds and accessories for the NCZMXK-803-3-S Busbar Punching Bending Cutting Machine. Before the machine is shipped from the factory, the specifications of the punching molds can be adjusted according to the customer's actual processing requirements. In addition to the standard molds, we can also provide special molds according to different requirements, including twist bending molds, cable lug molds, mark-free molds, one-step forming molds, and corner rounding molds.If you have special copper busbar processing requirements, you can send us the busbar processing mold drawings or processing requirements by email at fenghuacnc@gmail.com or via WhatsApp. Our technical engineers will design and customize the molds according to your requirements.
Display of Selected Molds：
 |  |  |  |
 |  |  |  |

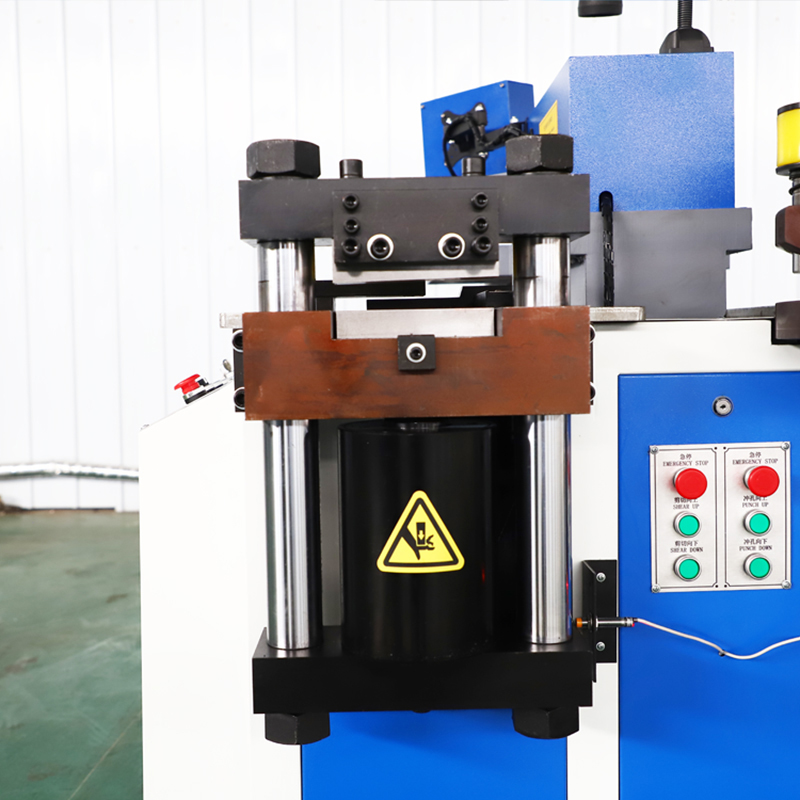

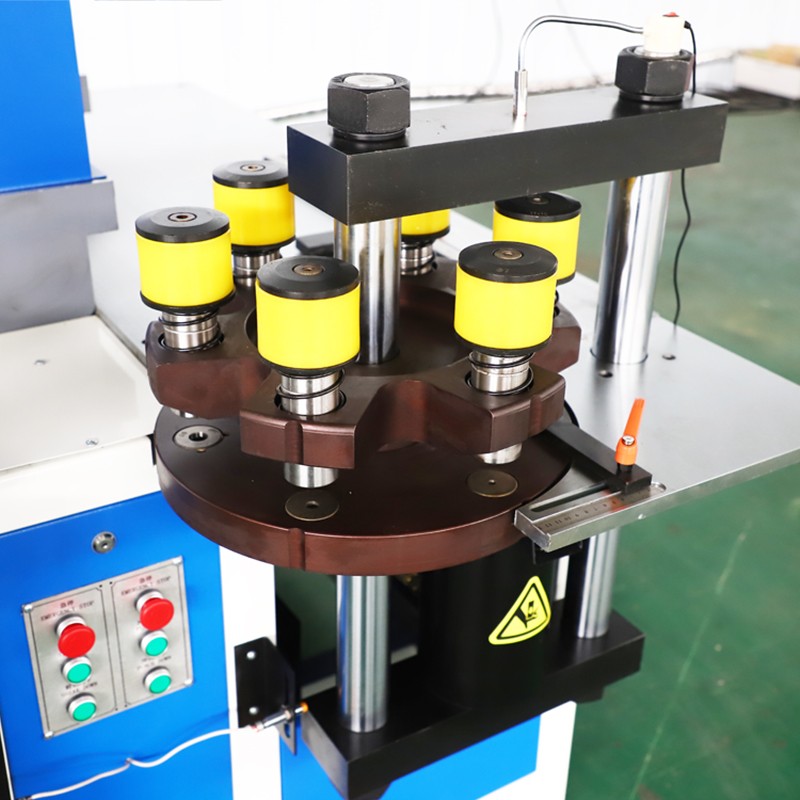

▌Product Details
 |  |  |
 |  |  |
 |  |  |
▌Why Choose Us?
Fenghua CNC is a professional busbar processing equipment manufacturer with a complete production system covering machine assembly, mechanical processing, mold production, and testing. The core components of the Busbar Punching Bending Cutting Machine are independently processed and assembled in our factory, without outsourcing or third-party assembly, ensuring equipment quality, delivery time, and after-sales service from the source.

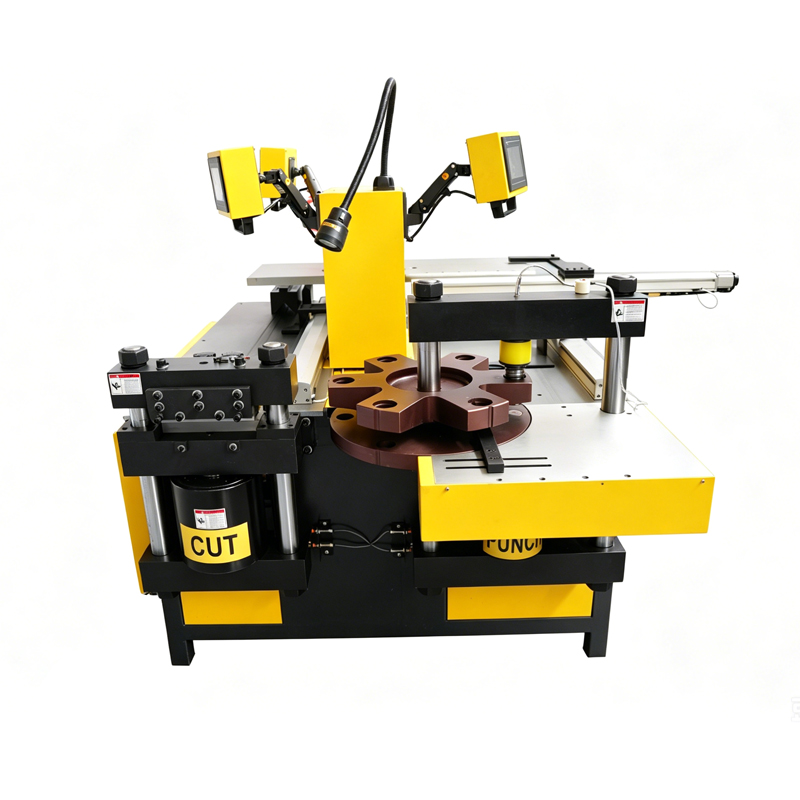

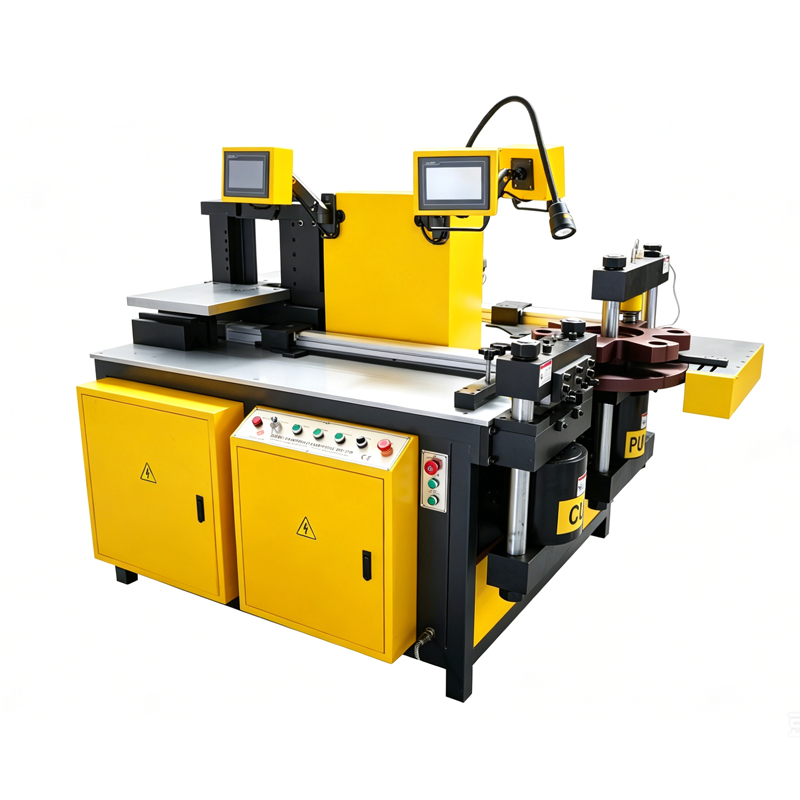

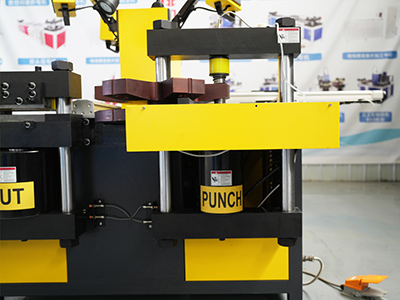

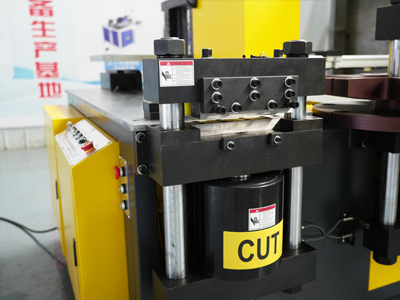

The Busbar Punching Bending Cutting Machine integrates three processing functions: punching, cutting, and bending. One machine can complete round hole and oblong hole punching, busbar cutting, as well as various bending operations such as flat bending, L-shaped bending, and U-shaped bending.
The Busbar Punching Bending Cutting Machine uses three 7.5 kW motors to independently drive three separate hydraulic systems, providing 80-ton hydraulic force for the punching, cutting, and bending units. The three processing units can work independently or simultaneously without interfering with each other, improving production efficiency while ensuring stable processing.

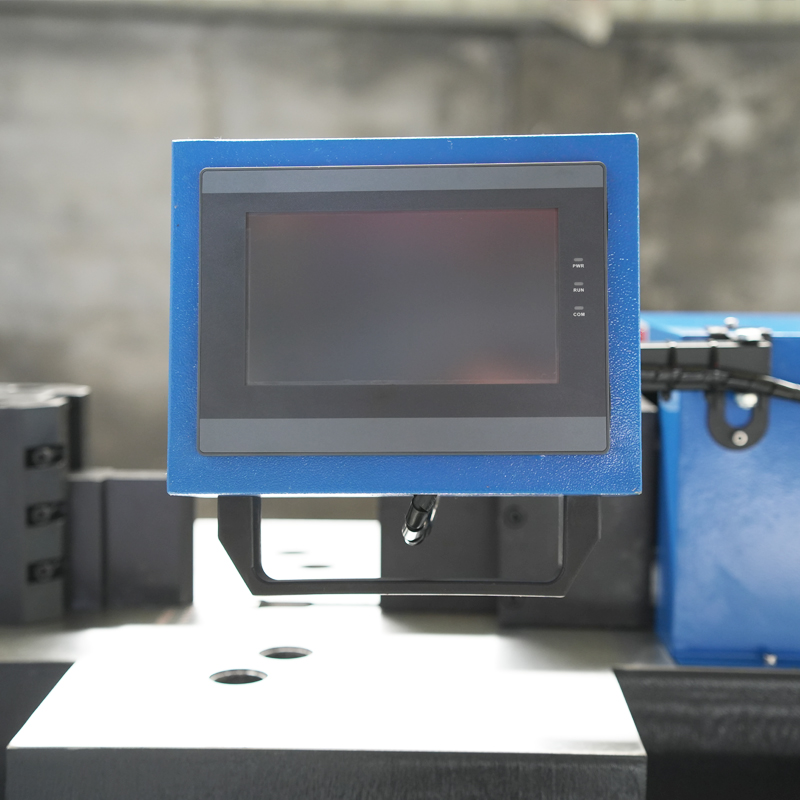

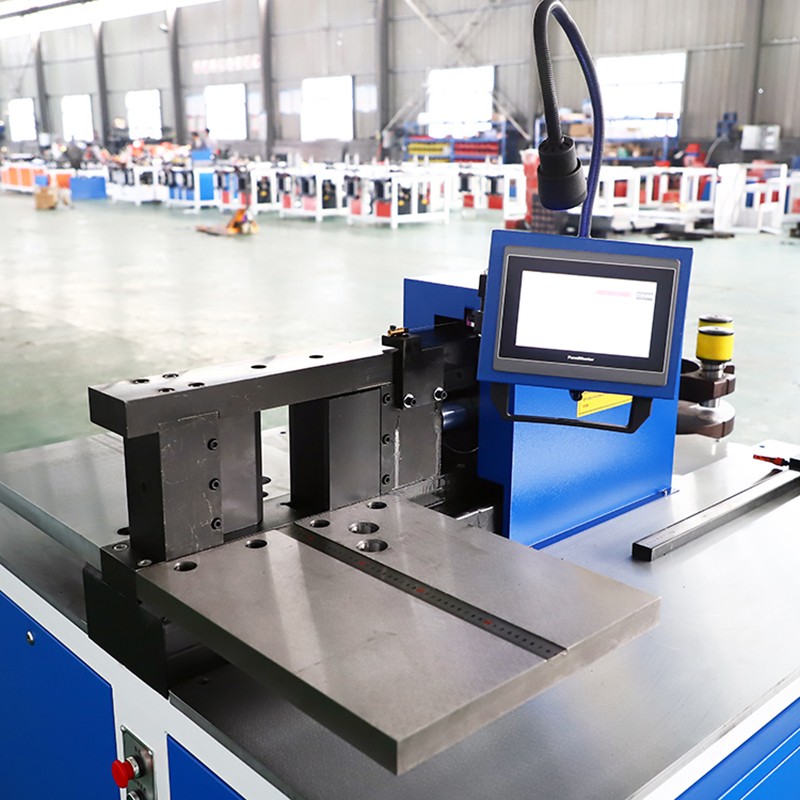

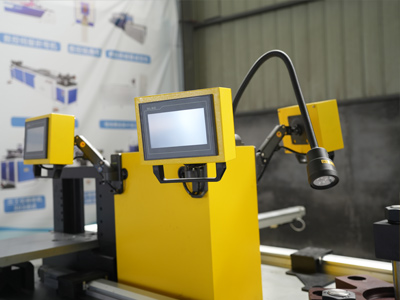

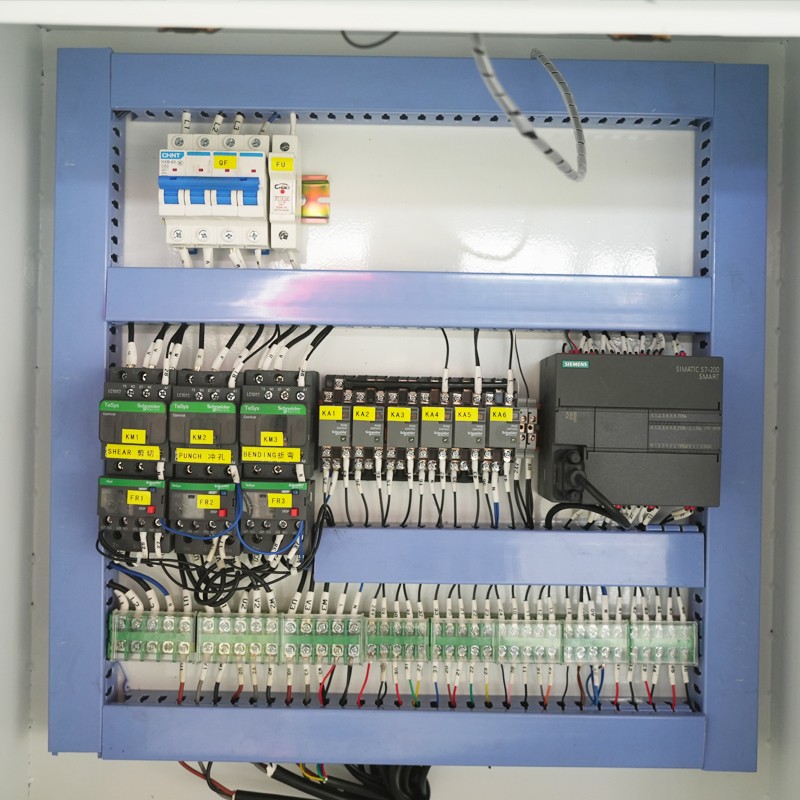

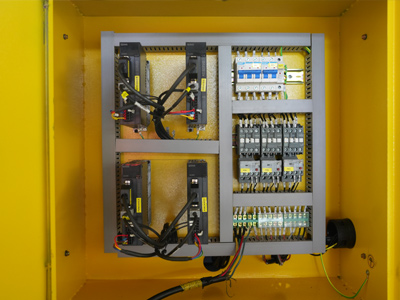

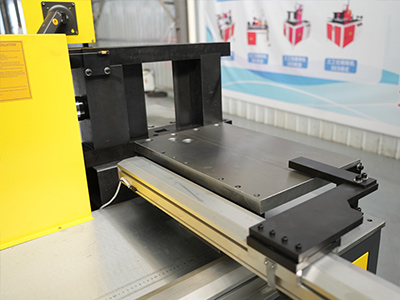

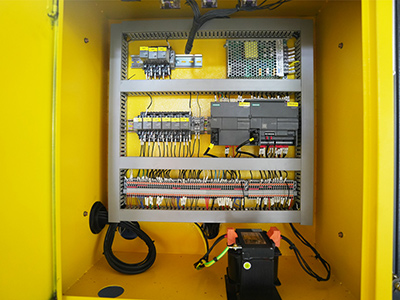

The machine is equipped with three independent servo positioning systems. Processing parameters can be set through the touch screens to achieve automatic positioning for all three processing units, reducing tedious manual measurement and calibration steps and improving busbar processing efficiency and positioning accuracy.
Fenghua CNC provides overseas customers with installation guidance, operation training, technical support, and after-sales service for the Busbar Punching Bending Cutting Machine. We help customers quickly master the operation of the machine and ensure its long-term stable operation.
▌Frequently Asked Questions
The Busbar Punching Bending Cutting Machine is mainly used for punching, cutting, and bending copper and aluminum busbars. It can process busbars in different specifications and is widely used in switchgear, distribution cabinets, and electrical equipment manufacturing industries.
The machine integrates three processing functions: punching, cutting, and bending. It can perform round hole and oblong hole punching, busbar cutting, as well as various bending operations such as flat bending, L-shaped bending, U-shaped bending, and Z-shaped bending to meet different busbar processing requirements.
The NCZMXK-803-3-S Busbar Punching Bending Cutting Machine can process copper and aluminum busbars with a maximum size of 300 × 20 mm (width × thickness). If you have busbar processing requirements in different specifications, you can view our 3-in-1 Busbar Processing Machine series to find a suitable busbar processing equipment solution.
The Busbar Punching Bending Cutting Machine uses three 7.5 kW motors to independently drive three separate hydraulic systems, providing 800 kN of processing force. It is also equipped with three servo positioning systems. By entering processing parameters through the program, the busbar processing position can be accurately positioned. This reduces manual measurement errors and improves busbar processing efficiency and accuracy.
Yes, it can be customized. We can provide customized solutions according to the customer's processing requirements, including processing dimensions, mold configuration, and electrical standards.
Fenghua CNC provides overseas customers with equipment technical consultation, installation guidance, operation training, spare parts support, and after-sales service. We help customers quickly put the machine into production and ensure its long-term stable operation.
