Multi-function Busbar Processing Machine

▌Product Description

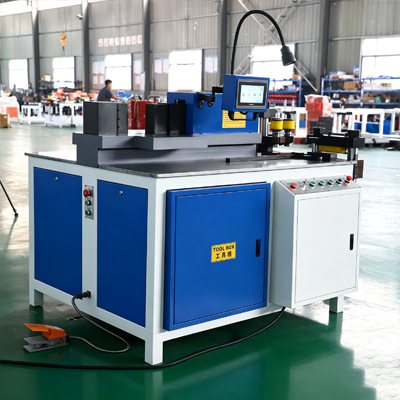

A multifunctional busbar processing machine is a 3-in-1 busbar processing machine that integrates punching, shearing, and bending. The machine is mainly used for processing copper busbars and aluminum busbars. By configuring different processing dies for different stations, one machine can complete various processing operations, including round holes, oblong holes, chamfering, flat bending, U-shaped bending, embossing, and twisting. Fenghua CNC provides multiple models of multifunctional busbar processing machines with different specifications. Customers can choose the suitable machine model according to their actual processing requirements. The machines are widely used in switchgear manufacturing, distribution cabinets, transformers, and other electrical equipment production industries.

▌Parameters

Fenghua CNC provides multiple models of multifunctional busbar processing machines with different specifications. The following is a comparison of the technical parameters of the main models. Customers can choose the suitable machine model according to their busbar processing specifications and actual production requirements.

Parameter	MX-303KSSK	MX-503BSSK	MX-803BSSK
Maximum punching force	400KN	500KN	800KN
Punching diameter range	φ4.3- φ34mm	φ4.3- φ34mm	φ4.3- φ34mm
Maximum punching width/thickness	160MM/16mm	260MM/16mm	300MM/20mm

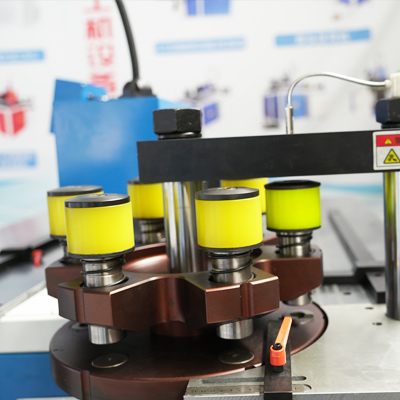

Number of punching stations	6-station	6-station	6-station
Maximum bending force	400KN	500KN	800KN
Maximum bending width/thickness	160MM/16mm	260MM/16mm	300MM/20mm
Bending accuracy tolerance	±0.2°	±0.2°	±0.2°
Maximum shearing force	400KN	500KN	800KN
Maximum shearing width/thickness	160MM/16mm	260MM/16mm	300MM/20mm

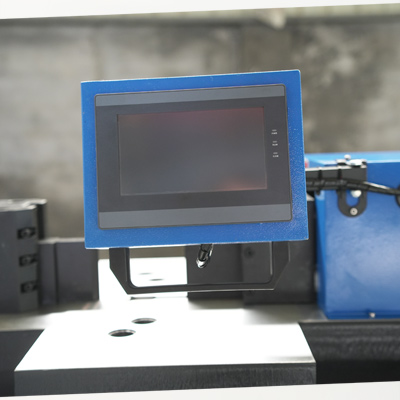

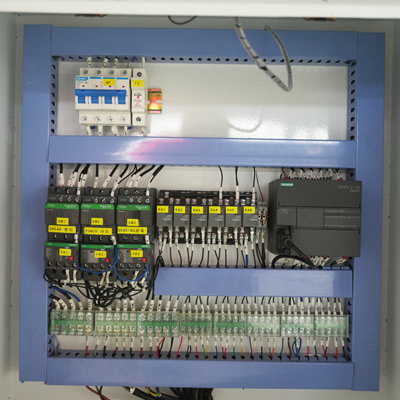

PLC system	Siemens	Siemens	Siemens
Motor power	3×4 KW	3×5.5 KW	3×7.5 KW
Standard operating voltage	380V 50Hz	380V 50Hz	380V 50Hz

▌Product video

▌Molds and Accessories

Standard Dies Equipped with the Main Machine

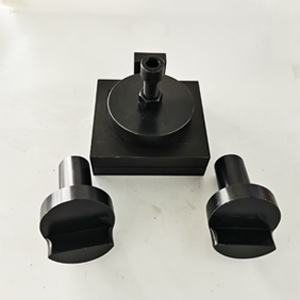

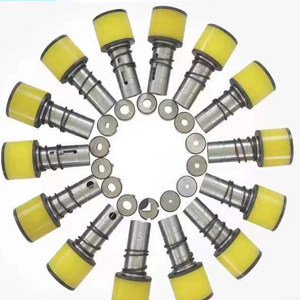

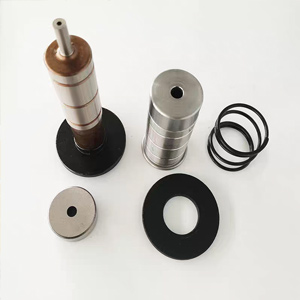

Punching Dies	φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21

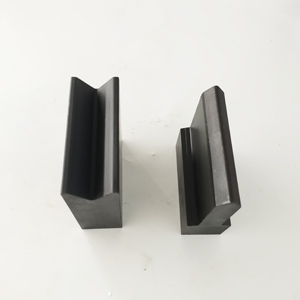

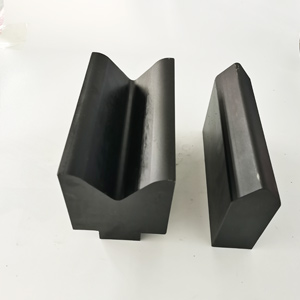

Bending Dies	Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending
Shearing Die	1 set

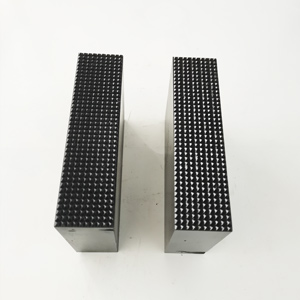

Embossing Die	1 set
Other Accessories

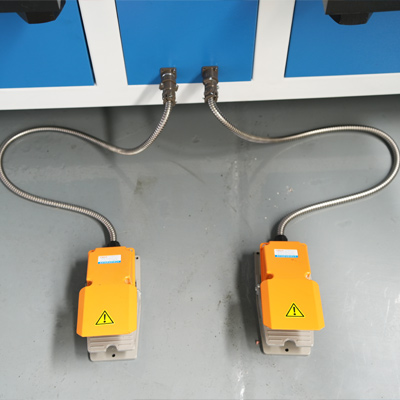

Foot Pedal Switch	3 pcs
Lubrication Device	1 set
Hex Key Set	1 set
Proximity Switch	1 pc
Relay	1 pc
Grease Gun	1 pc
Laser Light	1 pc

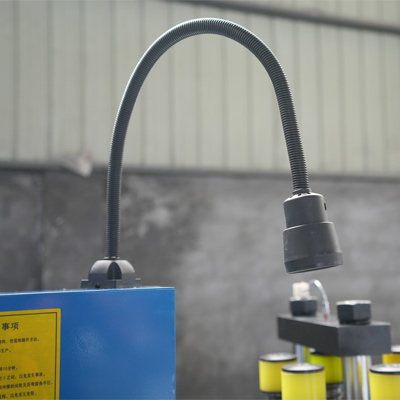

Work Light	1 pc
Punch Pin	1 pc

Note:
The above are the standard dies and accessories for the multifunctional busbar processing machine. Before the machine is shipped from the factory, the specifications of the punching dies can be adjusted according to the customer's actual processing requirements. In addition to the standard dies, we can also provide special dies according to different requirements, including twisting dies, terminal crimping dies, no-mark dies, one-step forming dies, and corner rounding dies. If you have special copper busbar processing requirements, you can provide us with busbar processing die drawings or processing requirements. You can send them to our technical engineers by email at fenghuacnc@gmail.com or via WhatsApp, and we will design and customize the dies according to your requirements.

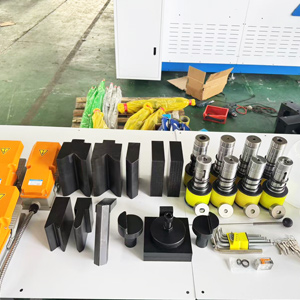

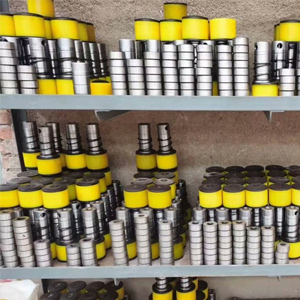

Display of Selected Molds：

▌Product Details


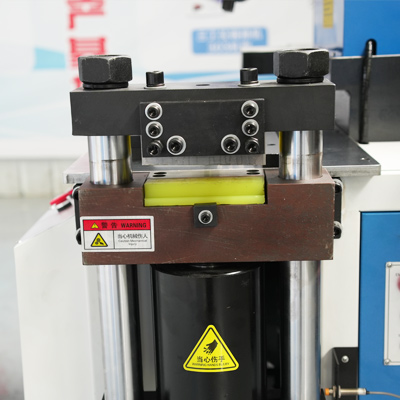

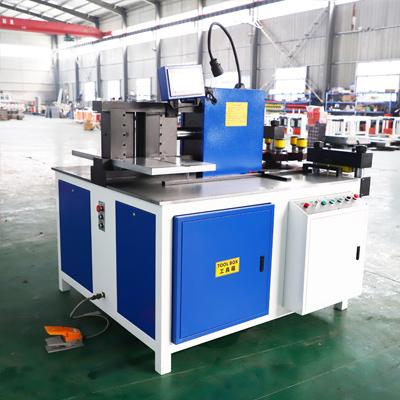

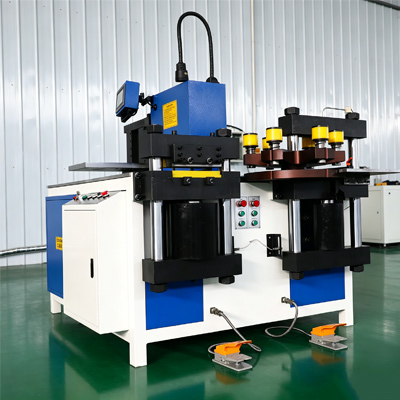

MX-303KSSK	MX-503BSSK	MX-803BSSK

▌Multifunctional Busbar Processing Machine Applications

Multifunctional busbar processing machines are widely used in power equipment manufacturing, electrical switchgear assembly, new energy equipment, and other industries. They are mainly used for punching, shearing, and bending copper busbars.

▪ High- and Low-Voltage Switchgear Manufacturing
▪ Distribution Cabinet Manufacturing
▪ Power Equipment Manufacturing
▪ Transformer Manufacturing
▪ New Energy Equipment Manufacturing
▪ Busbar Trunking System Manufacturing

▌Why Choose Us?

1. Source Factory, In-House Production

Fenghua CNC is a professional busbar processing machine manufacturer with a complete production system covering complete machine assembly, mechanical processing, die production, and testing. The core components of the multifunctional busbar processing machine are all processed and assembled in our own factory, without outsourcing or assembly from third-party components, ensuring equipment quality, delivery time, and after-sales service from the source.

2. One Machine for Multiple Busbar Processing Operations

The multifunctional busbar processing machine integrates punching, shearing, and bending functions into one machine. It can complete various processing operations according to actual processing requirements, including shearing, round holes, oblong holes, flat bending, U-shaped bending, chamfering, embossing, and twisting. For companies that need to perform multiple busbar processing operations, there is no need to frequently change machines. One machine can complete multiple processing operations.

3. Multiple Models Available for Different Production Requirements

Fenghua CNC provides multiple models of multifunctional busbar processing machines with different specifications. Customers can choose a suitable machine model according to busbar width, thickness, processing operations, and production requirements. If you need to learn more about our machine models, you can view our 3-in-1 busbar processing machine series.

4. Complete After-Sales Service System

Fenghua CNC provides overseas customers who purchase multifunctional busbar processing machines with equipment installation guidance, operation training, technical support, and after-sales service. We help customers quickly master the operation of the equipment and ensure its long-term stable operation.

▌Frequently Asked Questions

1、What materials is the multifunctional busbar processing machine mainly used to process?
The multifunctional busbar processing machine is mainly used to process copper and aluminum busbars. The corresponding machine model can be selected according to different busbar specifications and processing requirements. It is commonly used in industries such as power equipment, switchgear, and distribution cabinets.
2、What processing operations can the multifunctional busbar processing machine perform?
The multifunctional busbar processing machine has three processing units for punching, shearing, and bending. By changing different processing dies, it can complete more than 10 processing operations, including round holes, oblong holes, shearing, flat bending, U-shaped bending, Z-shaped bending, as well as special busbar processing such as embossing and twisting.
3、What size busbars can the multifunctional busbar processing machine process?
The multifunctional busbar processing machine is also known as a 3-in-1 busbar processing machine. Common models include the 303, 503, and 803 series, which can process copper and aluminum busbars with maximum sizes of 160×16mm, 260×16mm, and 300×20mm, respectively. If you need to learn more about busbar processing machine specifications, you can visit our 3-in-1 busbar processing machine product page for more information.
4、Can the multifunctional busbar processing machine be customized?
Yes, it can be customized. We can provide customized solutions according to the customer's processing requirements, including processing dimensions, die configurations, electrical standards, and automation function upgrades.
5、Can the dies of the multifunctional busbar processing machine be replaced?
Yes. The multifunctional busbar processing machine can be equipped with different dies according to different processing operations, including punching dies, bending dies, and other special processing dies, to meet the processing requirements of busbars with different specifications and shapes.
6、What services are provided to overseas customers who purchase a multifunctional busbar processing machine?
Fenghua CNC provides overseas customers with technical consultation, installation guidance, operation training, spare parts support, and after-sales service, helping customers quickly put the machine into production.
