Busbar Processing Machine
▌Product Description

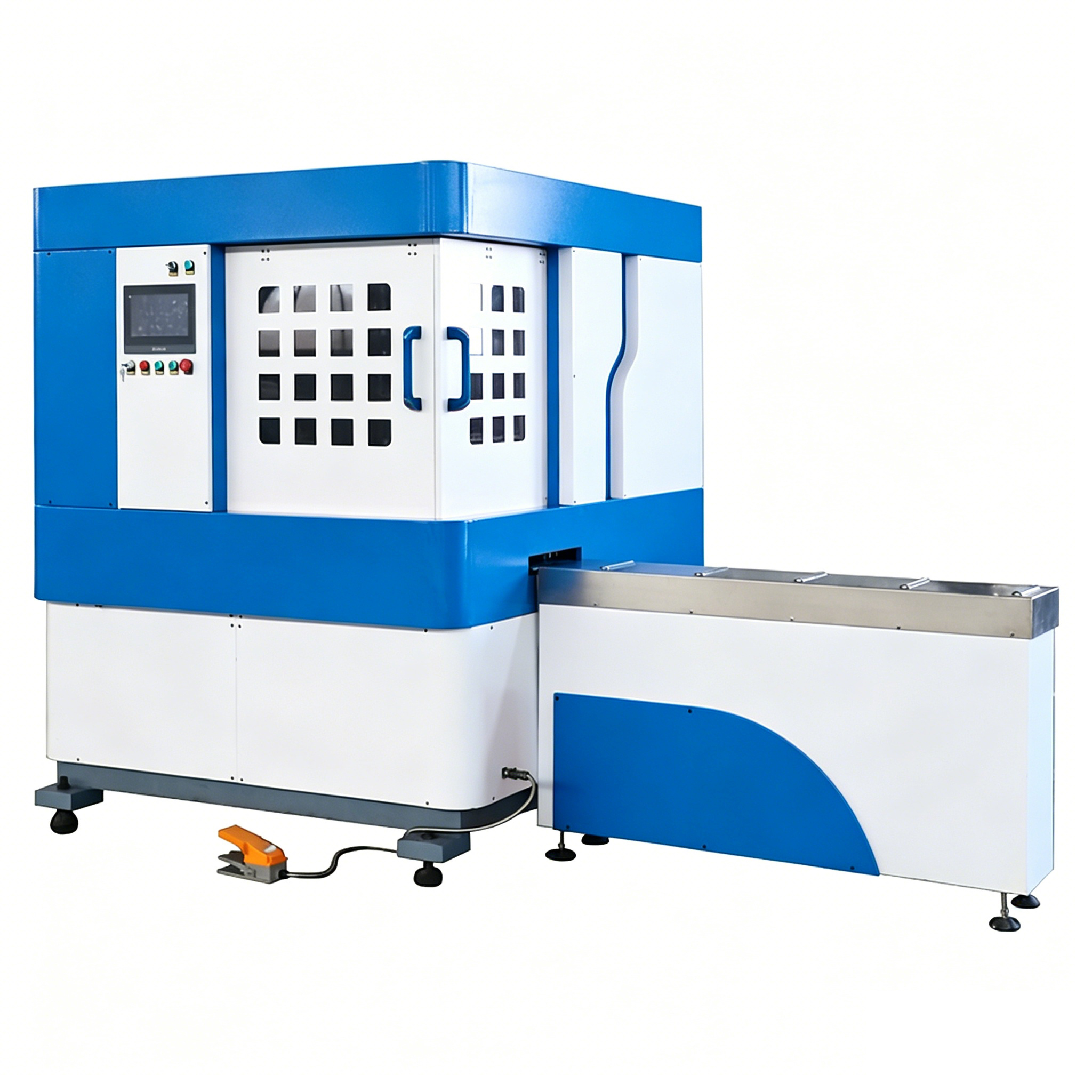

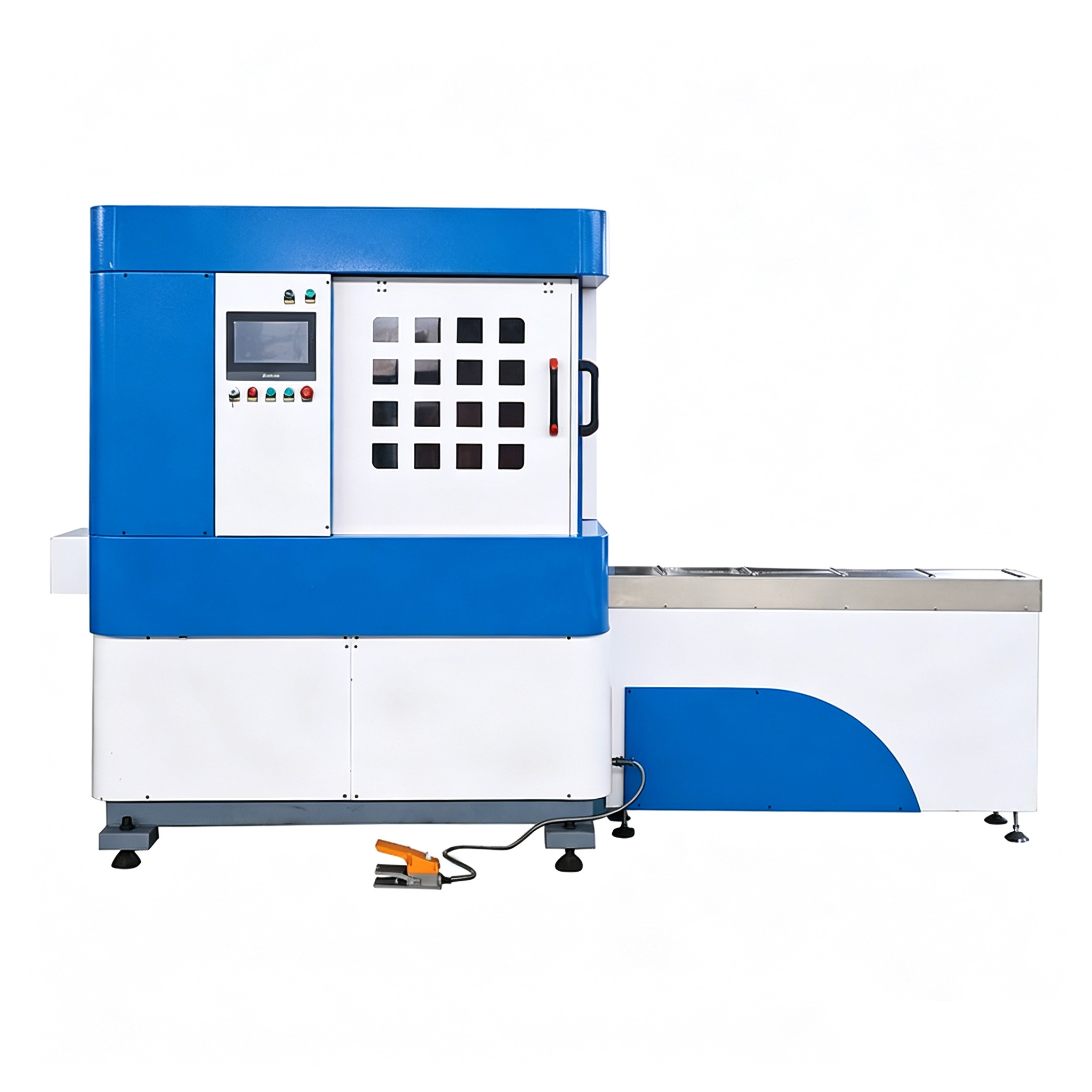

The CNC Busbar Chamfering Machine is a busbar processing machine specially designed for chamfering and arc machining at the ends of copper and aluminum busbars. The machine adopts a CNC control system. The operator enters processing instructions through the human-machine interface, enabling automatic tool changing, automatic busbar clamping, and automatic milling of the busbar. It supports 10 busbar end and edge processing methods, including round corners (R corners), semicircles, bevels, arcs, irregular round corners, and other processing types.
The NCXJ-200 CNC Busbar Chamfering Machine can process copper and aluminum busbars with a maximum size of 200 × 12 mm (width × thickness). It is widely used in the electrical equipment manufacturing industry, including high- and low-voltage switchgear, transformers, and new energy equipment.
▌Parameters
To determine whether a CNC Busbar Chamfering Machine meets your production requirements, you should focus on the equipment processing range, spindle parameters, and tool configuration. Below are the technical specifications of the NCXJ-200 model recommended by Fenghua CNC, a busbar chamfering machine supplier:
NCXJ-200 CNC Busbar Chamfering Machine | Unit | Parameter | |
Cutting Part | Spindle Speed | rpm | 4000 |
Motor Power | Kw | 5.5 | |
Tool Holder Model |
| BT40 | |
Feeding Part | X-axis Travel | mm | 560 |
Y-axis Travel | mm | 350 | |
Servo Power | KW | 2 x 1.5 | |
Feed Speed | mm/min | 3000 | |
Tool Parameters (Diameter) | mm | 70 | |
Number of Tool Magazine | 个 | 6tools | |
Minimum Allowable Plate Length | mm | 160 | |
Maximum Allowable Plate Size (Width × Thickness) | mm | 200×12 | |
Minimum Allowable Plate Size (Width × Thickness) | mm | 30×3 | |
Total Weight | Kg | 1960 | |
Machine Footprint: Length × Width | mm | 3400 (including feeding rack) × 1600 × 2050 | |
Air Supply Pressure | Mpa | 0.5-0.65 | |
▌Product video
▌Molds and Accessories
Name | Tool Model | Quantity |
Tool Holder | BT40-GA70 | 6 sets |
Cutter Head | R6.5*70 | 1 set (Suitable for copper busbar thickness of 11-12 mm) |
R5.5*70 | 1 set (Suitable for copper busbar thickness of 9-10 mm) | |
R4.5*70 | 1 set (Suitable for copper busbar thickness of 7-8 mm) | |
R3.5*70 | 1 set (Suitable for copper busbar thickness of 6 mm) | |
R3*70 | 1 set (Suitable for copper busbar thickness of 5 mm) | |
R2.5*70 | 1 set (Suitable for copper busbar thickness of 3-4 mm) |
Note:

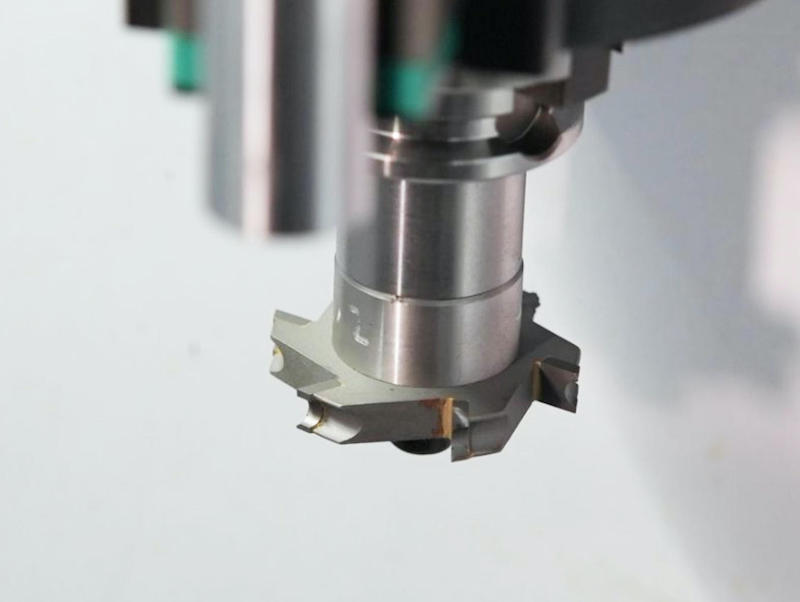

Display of Selected Molds：
 |  |

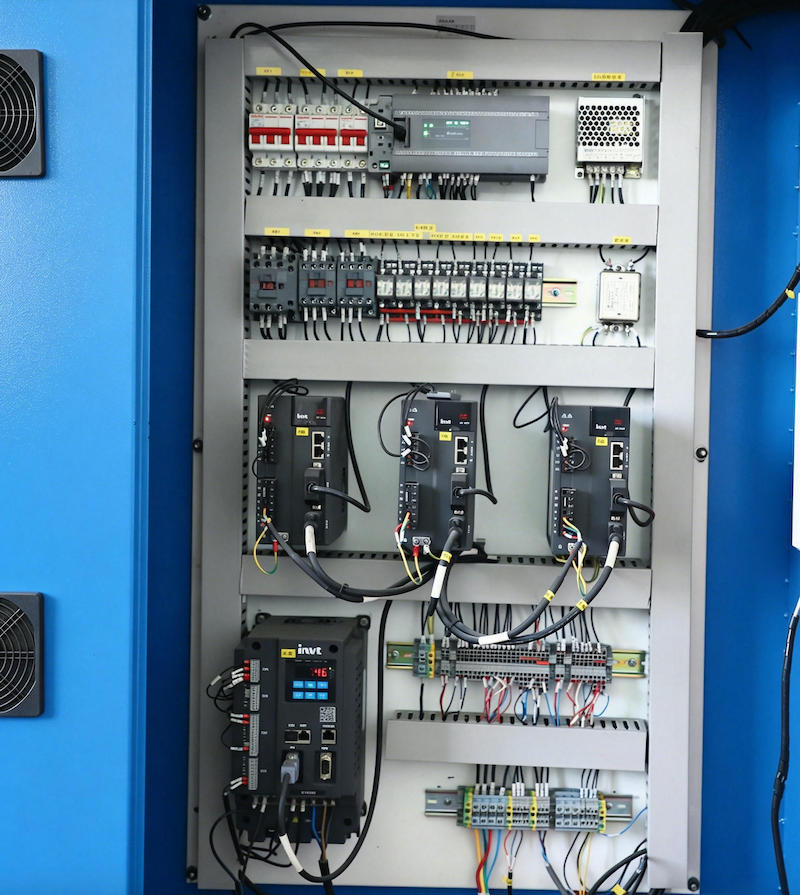

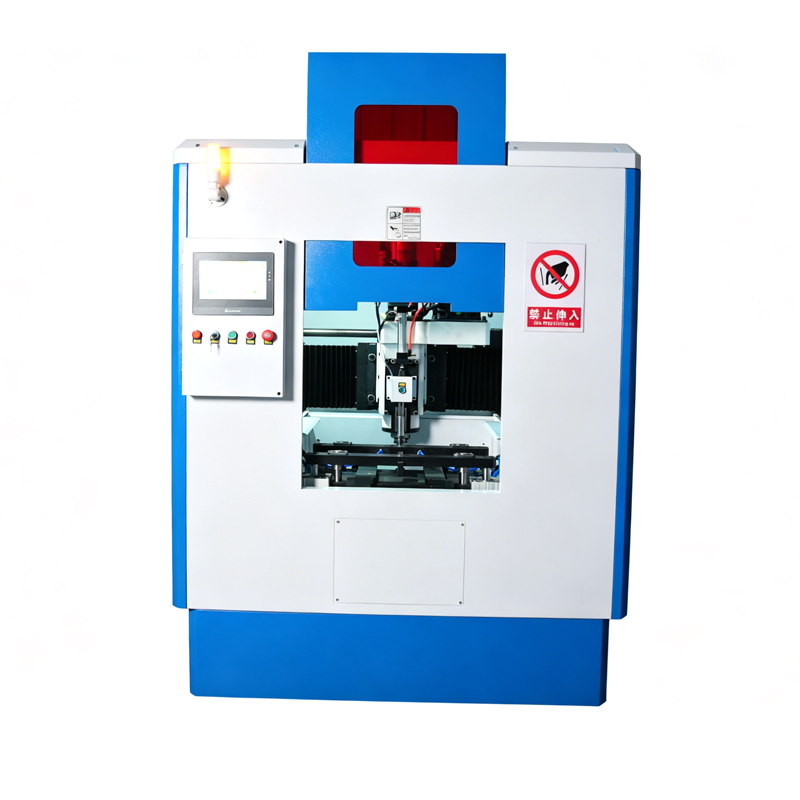

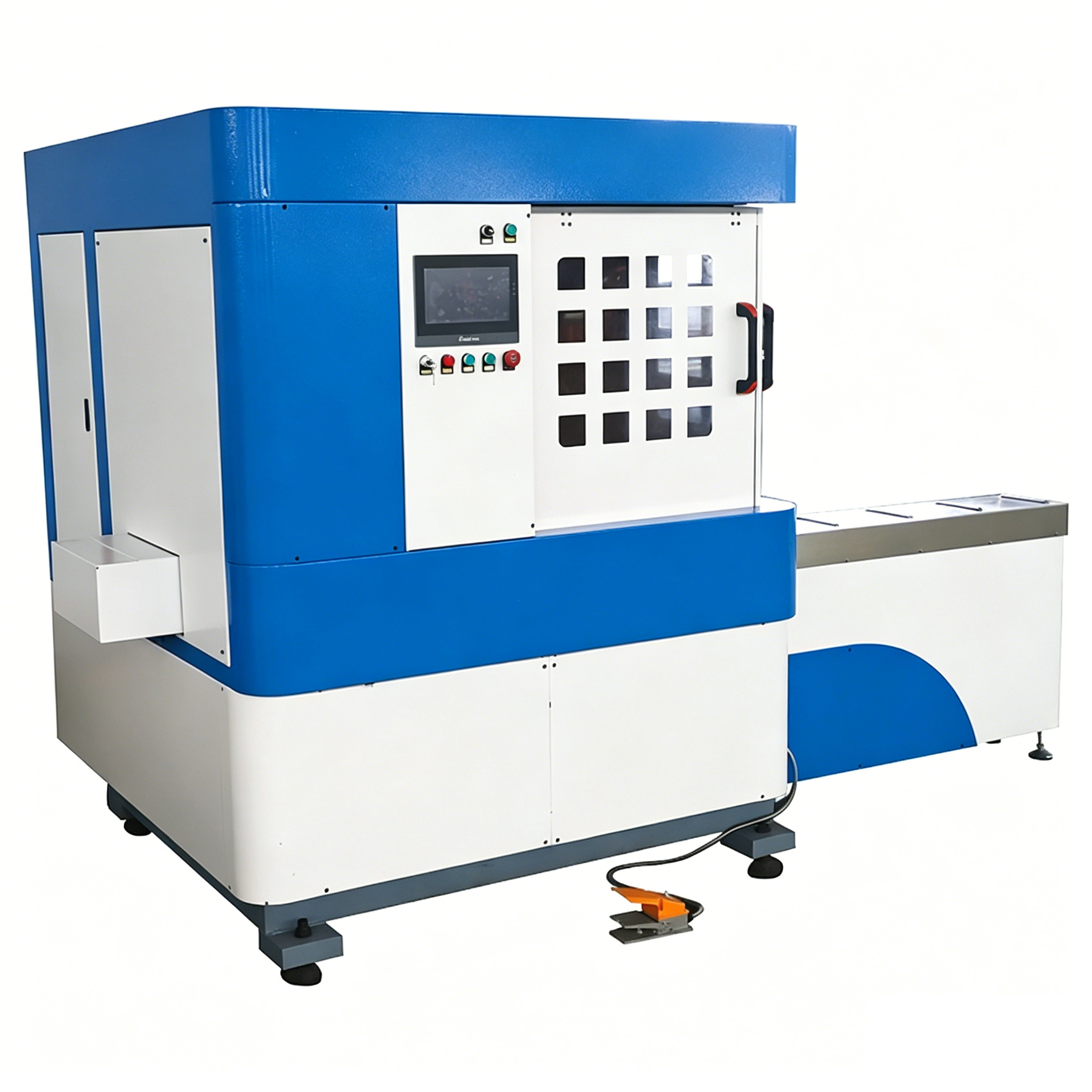

▌Product Details
 |  |  |  |
 |  |  |  |
▌Why Choose Us?
1. Source Factory, In-House Production
Fenghua CNC is a professional busbar processing equipment manufacturer with a complete production system covering machine assembly, mechanical machining, mold production, and inspection. The core components of the CNC Busbar Chamfering Machine are independently machined and assembled in our factory, without outsourcing or assembly from external components, ensuring equipment quality, delivery time, and after-sales service from the source.
2. High-Precision Servo Drive System to Ensure Processing Accuracy
The X and Y axes use high-performance servo motors and servo drives to achieve precise motion control. The transmission system is equipped with Taiwan HIWIN high-precision ball screws and linear guides, featuring stable operation, high positioning accuracy, low noise, and long service life, ensuring stable processing accuracy during long-term operation of the machine.

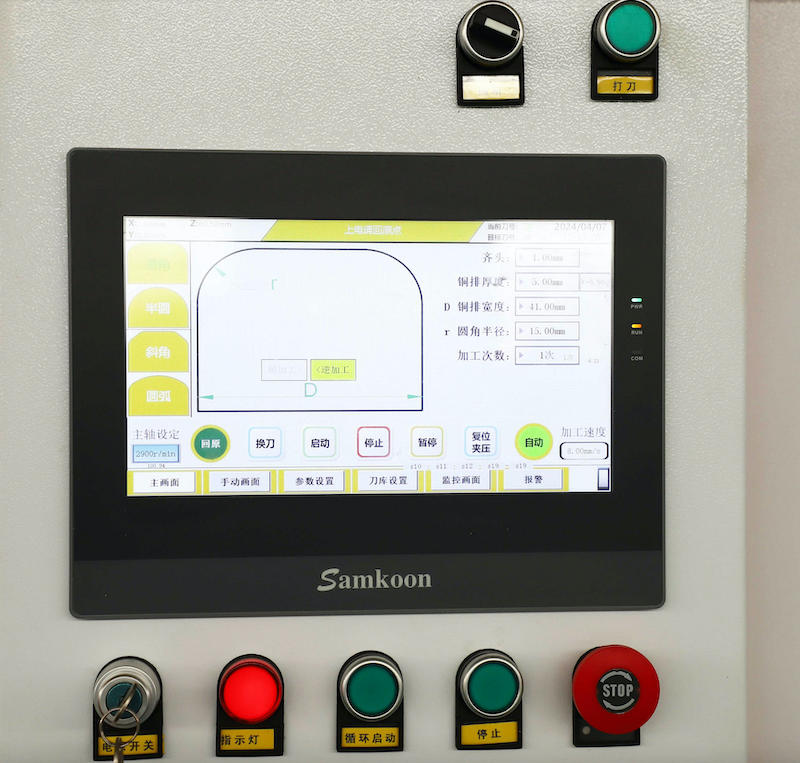

3. CNC System Control for Easy Operation

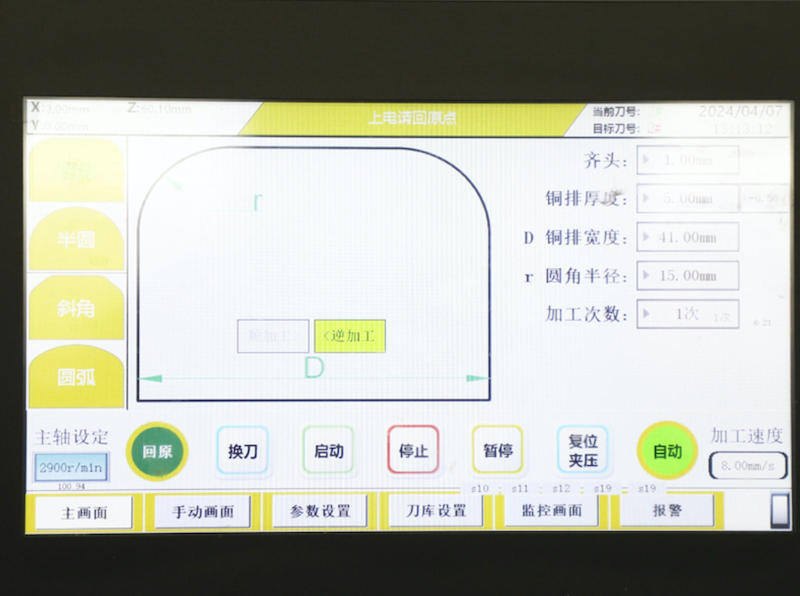

The machine adopts CNC system control. The operator only needs to enter parameters through the human-machine interface, and the system can automatically generate the processing program to achieve automatic processing of different contours at the busbar ends.

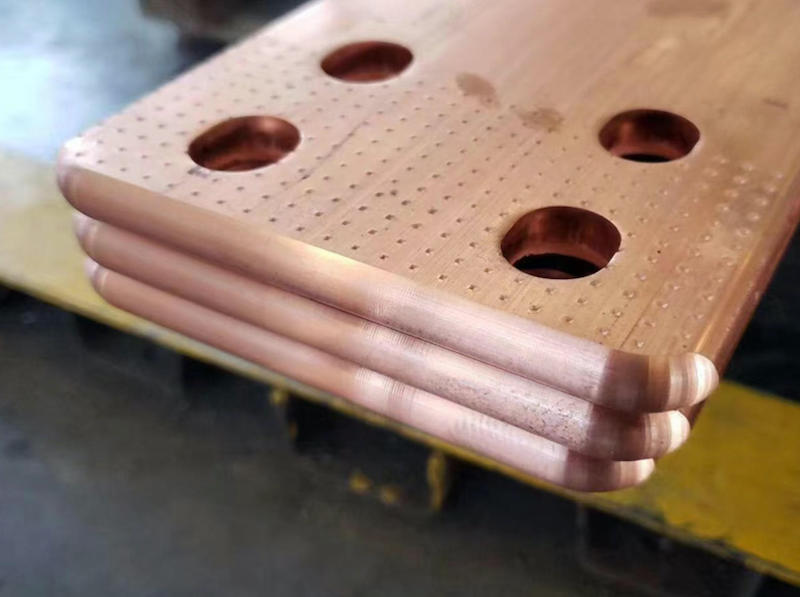

4. Multiple Processing Modes to Meet Complex Busbar Processing Requirements
The CNC Busbar Chamfering Machine supports 10 busbar end and edge processing methods. It can not only complete standard chamfering, but also perform round corners (R corners), semicircles, bevels, arcs, irregular round corners, irregular bevels, and stepped composite contour processing, meeting the processing requirements of different shapes of copper and aluminum busbars and improving the processing adaptability of the machine.
5. Comprehensive After-Sales Service System
Fenghua CNC provides overseas customers with installation guidance, operation training, technical support, and after-sales service for CNC Busbar Chamfering Machines, helping customers quickly master the operation of the machine and ensuring its long-term stable operation.
